11.3 THT100- Tandem Unit
The THT-100 is available in a Tandem Unit which incorporates two sets of rotor arms and
mechanisms into one extended top channel unit as illustrated in figure below. Installation
follows the typical THT100 unit.
Part Description
A01 Side Shields
A02 Tandem Barrier Assembly
A03 Rotor Arm Assembly (6 Each)
A04 Base Plate Assemblies (w/Bearings)
A05 Ceiling Plates
A06 Top Channel Mechanism w/cover

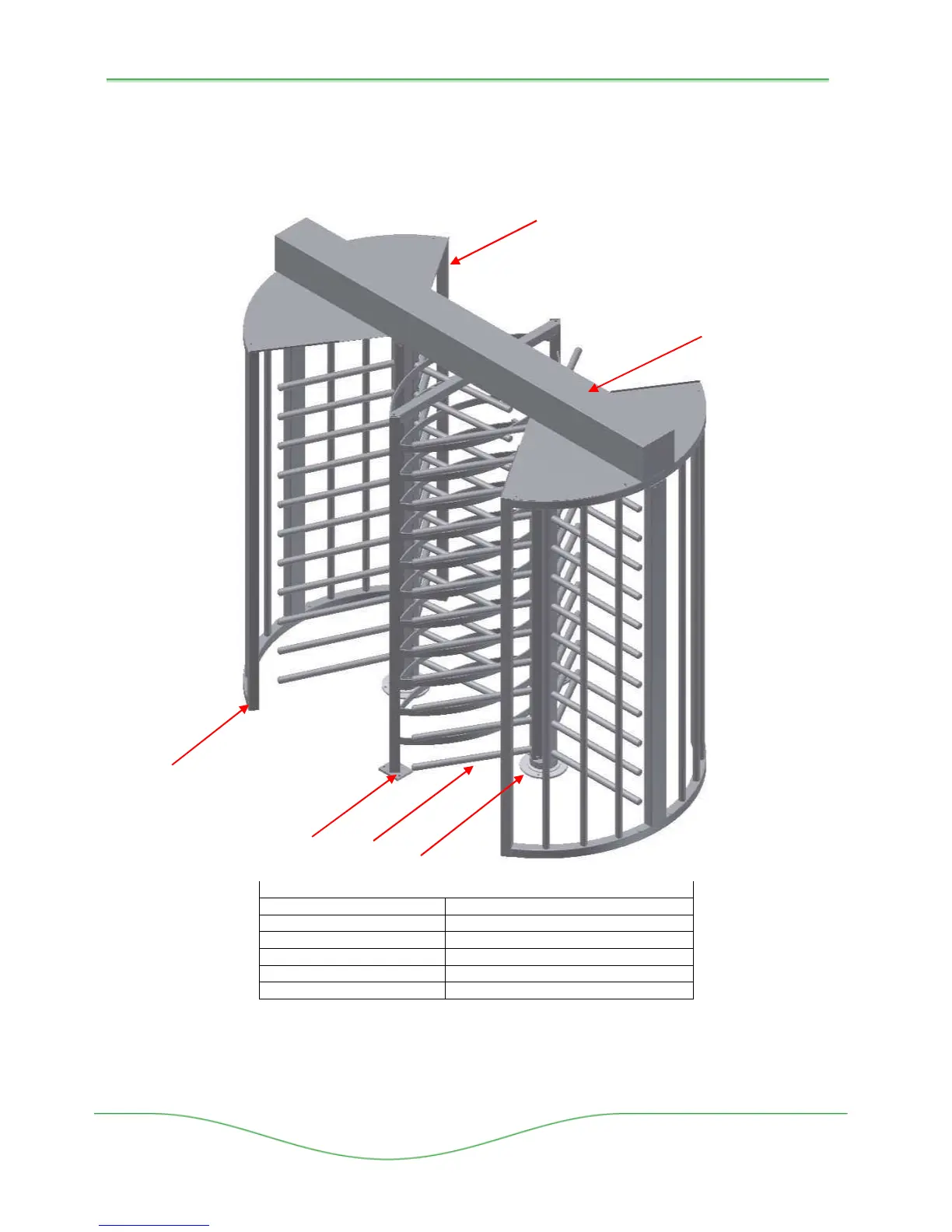

Figure 11.2: THT100 Tandem Unit
A04
A02
A01
A03
A06
A05
