THT-100 36
Boon Edam Inc.
402 McKinney Parkway Version: Rev A6 10/28//2011
Tel. 910-814-3800 fax 910-814-3899 Issue: THT-100-IMM-USA
6 Parts Overview
6.1 THT100- Exploded View

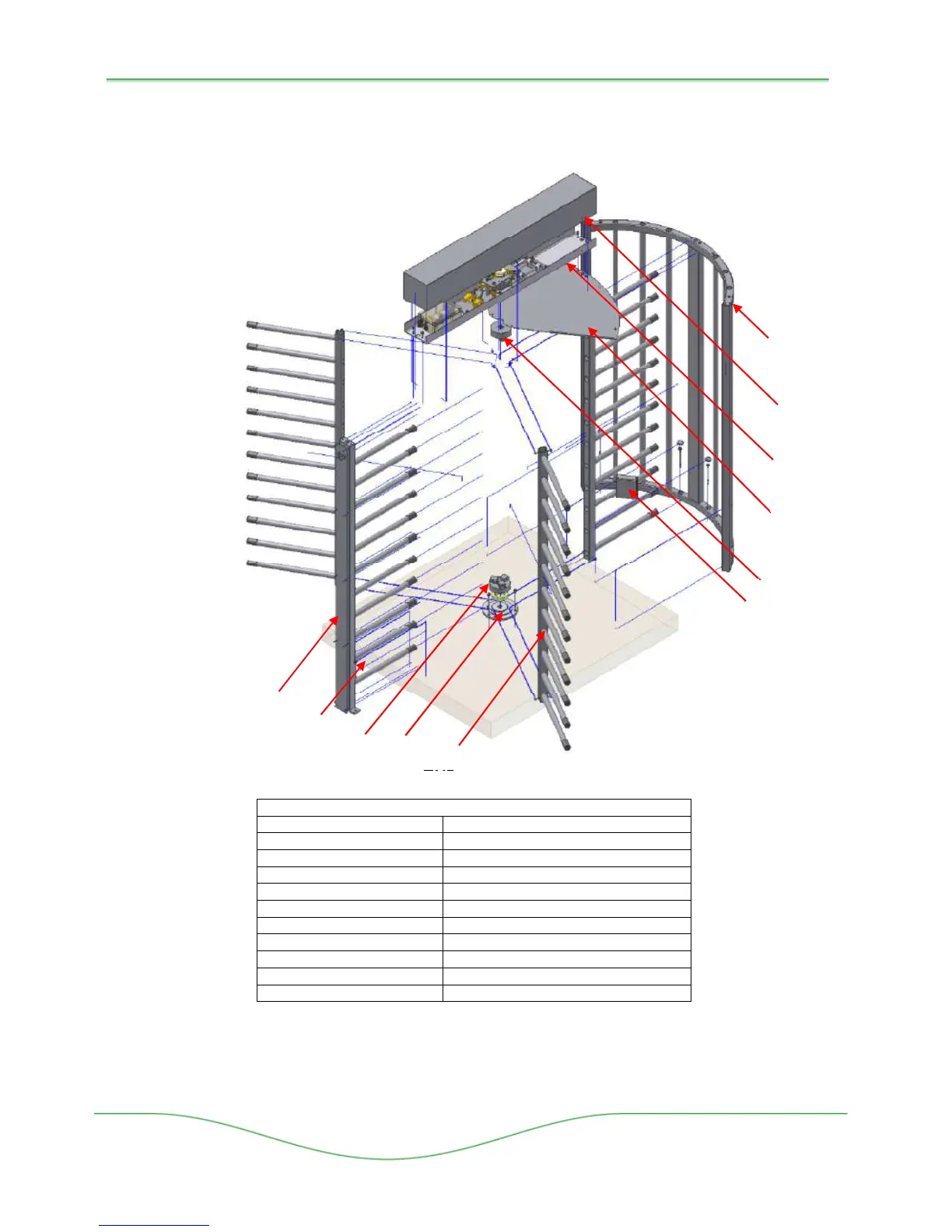

Figure 6-1: THT-100 Exploded View
Figure 6-2: THT-100 Parts Description
Part Description
A01 Side Shield
A02 Card Reader Bracket (Optional)
B01 Top Channel Cover
B02 Top Channel Mechanism
B03 Ceiling Plate
C01 Top Flange Assembly
C02 Bottom Flange Assembly
C03 Base Plate Assembly (w/Bearing)
C04 Rotor Arm Assembly (3 Each)
D01 Barrier Assembly
D02 Barrier Post Cover
C04
D01
B01
C03
C02
D02
A02
B03
B02
C01
A01
