BOON EDAM THT-100 - Access Control Integration Wiring

THT-100 32
Boon Edam Inc.
402 McKinney Parkway Version: Rev A6 10/28//2011
Tel. 910-814-3800 fax 910-814-3899 Issue: THT-100-IMM-USA
Electrical Fusing
For 110/220 VAC single phase Mains Power, a 2.5 Amp fuse is located inside the Mains
Power Receptacle as noted in Figure 5.18. An integrated fuse holder is located in the
lower portion of the receptacle.
Units using dual phase 220 VAC, requires an additional factory supplied fuse located
inside the control box. Reference electrical drawings in the appendix 11.2 for additional
information.

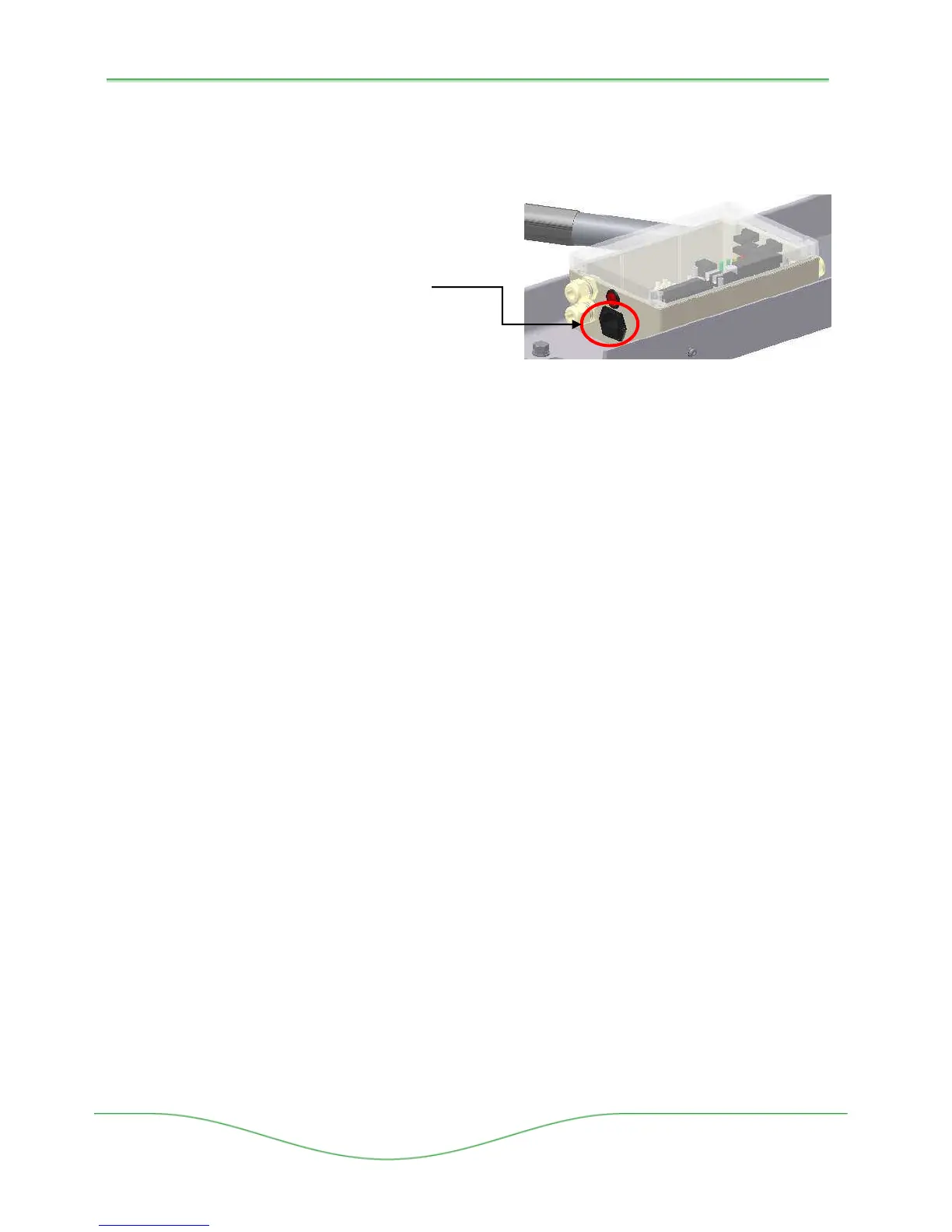

Figure 5-18: Mains Power Receptacle
Receptacle with Fuse Holder
