BOON EDAM THT-100 - Control Board Configuration

33 Installation and Maintenance Manual
Version : 10//28/2011
Issue : THT-100-IMM-USA REV A6
Access Control Integration
The Access Control System (ACS) connections are terminated to the X1 and X2 terminal strips
located inside the main control box. The following integration connections are available:

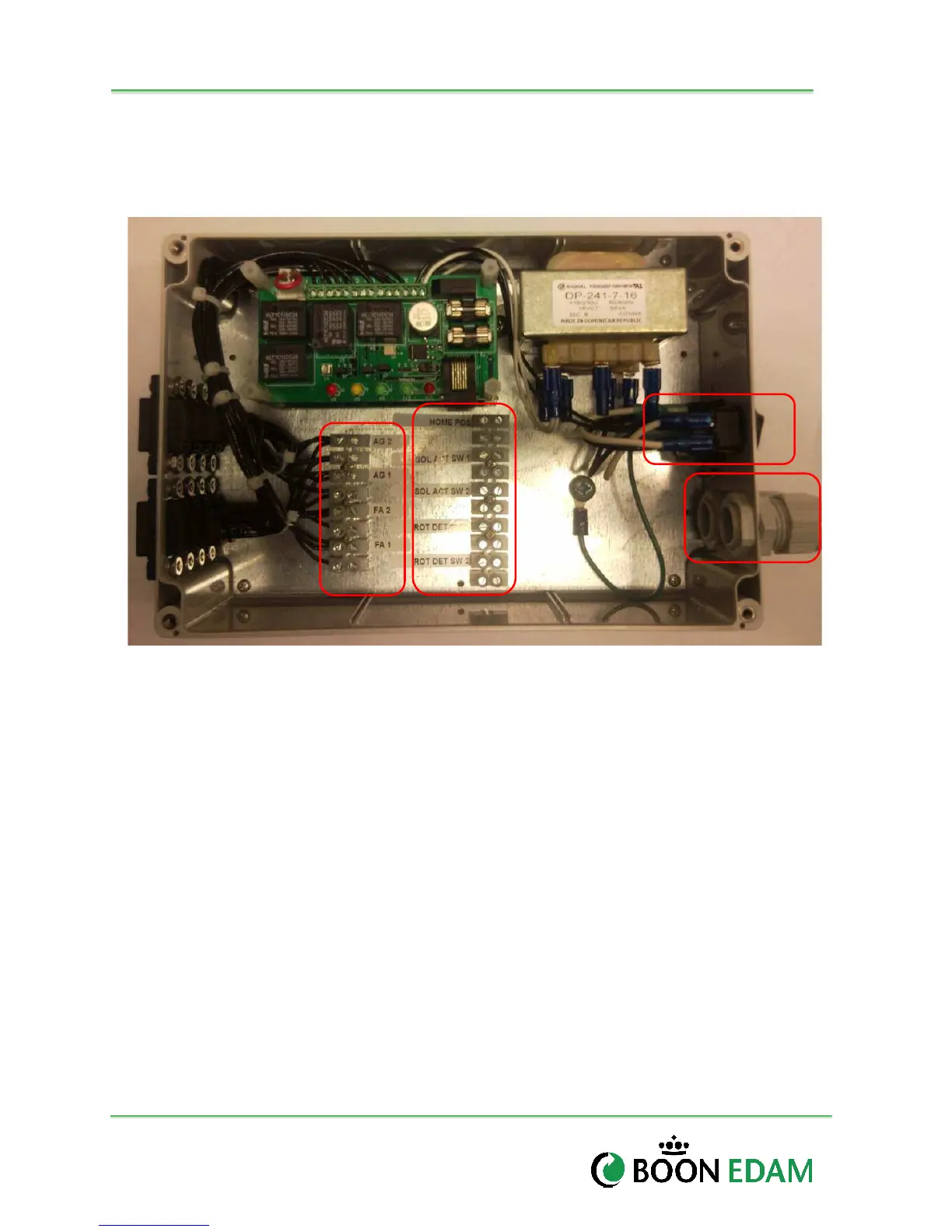

Figure 5-19: Main Control Box
Terminal Strips
X1 Terminal Strip
• AG2 - Access Grant CW
• AG1 - Access Grant ACW
• FA 2 - Fire Alarm CW
• FA 1 - Fire Alarm ACW
X2 Terminal Strip
• HOME POS – Home Position
• SOL ACT SW1 – Solenoid Activation Switch 1
• SOL ACT SW2 – Solenoiod Activation Switch 2
• ROT DET SW 1 – Rotation Detection Switch ACW
• ROT DET SW 2 - Rotation Detection Switch CW
X1 X2
MCB Control Board
Transformer
Cable Glands
for ACS Wiring
Mains Power
Connector
Fuse Holder
