29
Installation and Maintenance Manual
Version : 10//28/2011
Issue : THT-100-IMM-USA REV A6
Top Channel Cover
The standard cover fits over the top channel and mechanism. It is connected by six M5 bolts
and flat washers. Note: See section 5.6 before securing the top channel cover. It is
necessary to connect electrical power, access control and check the operation of the
mechanism.

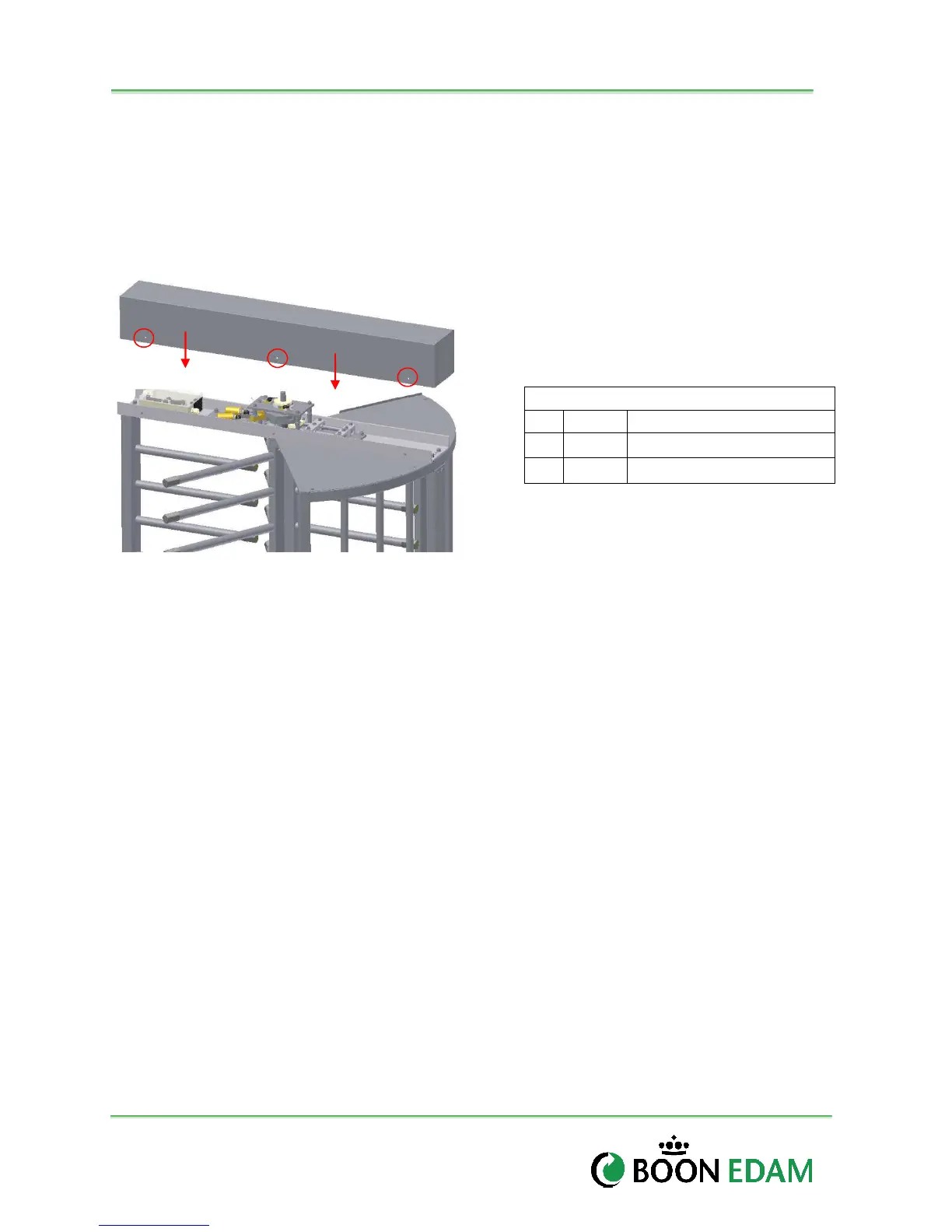

Figure 5-14: Top Channel and Ceiling Plate Connections
Hardware Used in this Process
Qty Part # Description
6 HW054 M5x0.8 x 13 Bolt
6 HW020 M5 Washer
