bora Classic 2.0 Series User Manual

EN
18
Installation
www.bora.com
4.5.2 Surface mounting
x
B ±2
≤ R5
≥ 50
(≥ 50)
495 ±2
≥ 600

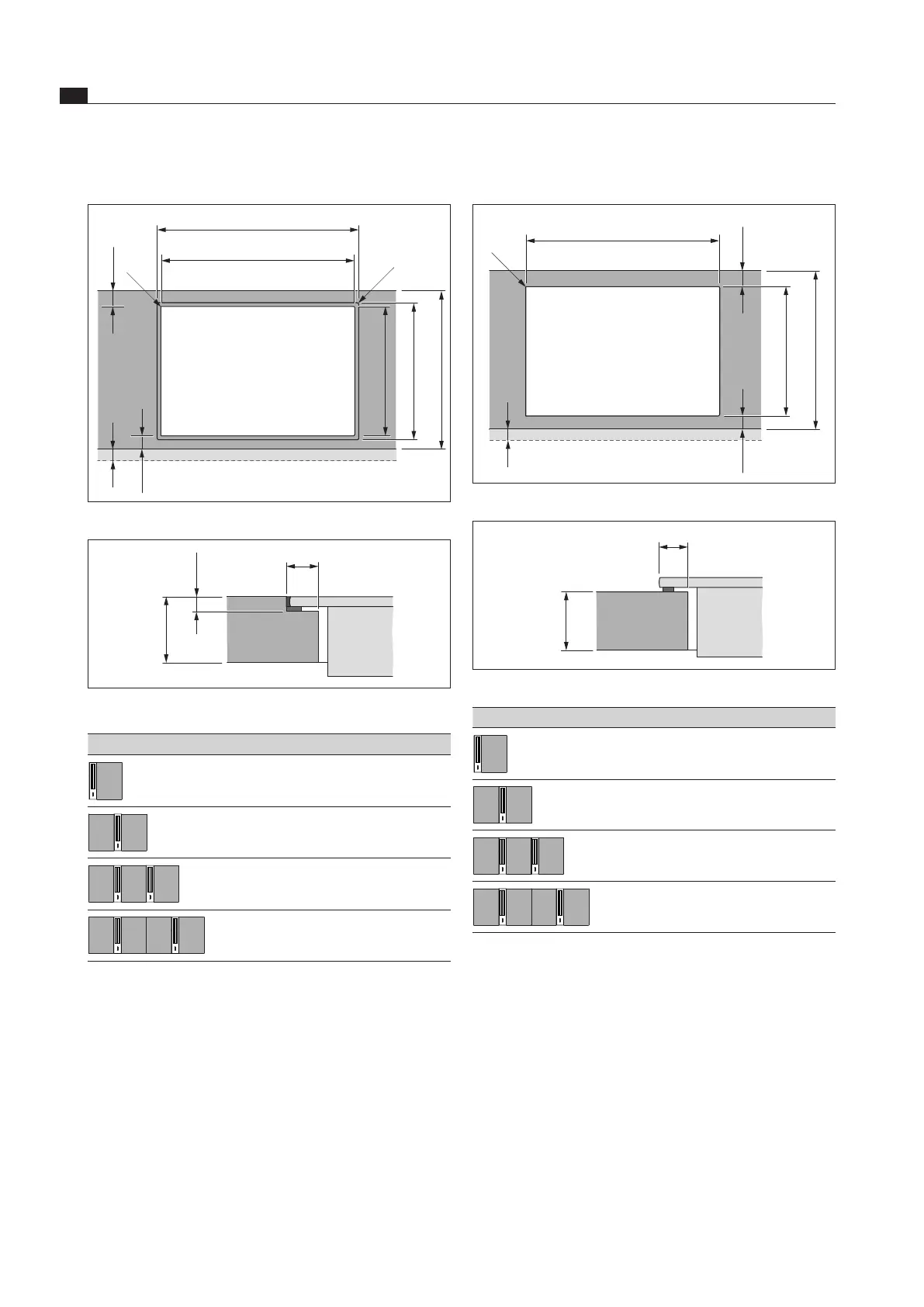

Fig. 4.7 Cut-out dimensions for surface mounting
10
10 - 40
Fig. 4.8 Dimension of support for surface mounting
Cooktops/cooktop extractor B in mm
1/1 424
2/1 752
3/2 1197
4/2 1525
Tab. 4.4 Cut-out dimensions of the appliance combinations in
the case of surface mounting
4.5.1 Flush installation
x
A ±2
B ±2
519 ±2
≤ R5
≤ R5
≥ 50
(≥ 50)
495 ±2
≥ 600
Fig. 4.5 Cut-out dimensions for ush installation
7 +0,5
12
10 - 40
Fig. 4.6 Groove dimensions for ush installation
Cooktops/cooktop extractor A in mm B in mm
1/1 448 424
2/1 776 752
3/2 1221 1197
4/2 1549 1525
Tab. 4.3 Cut-out dimensions of the appliance combinations in
the case of ush installation
