EN
25
Installation
www.bora.com
4.11.2 Securing the cooktop extractor
1
2

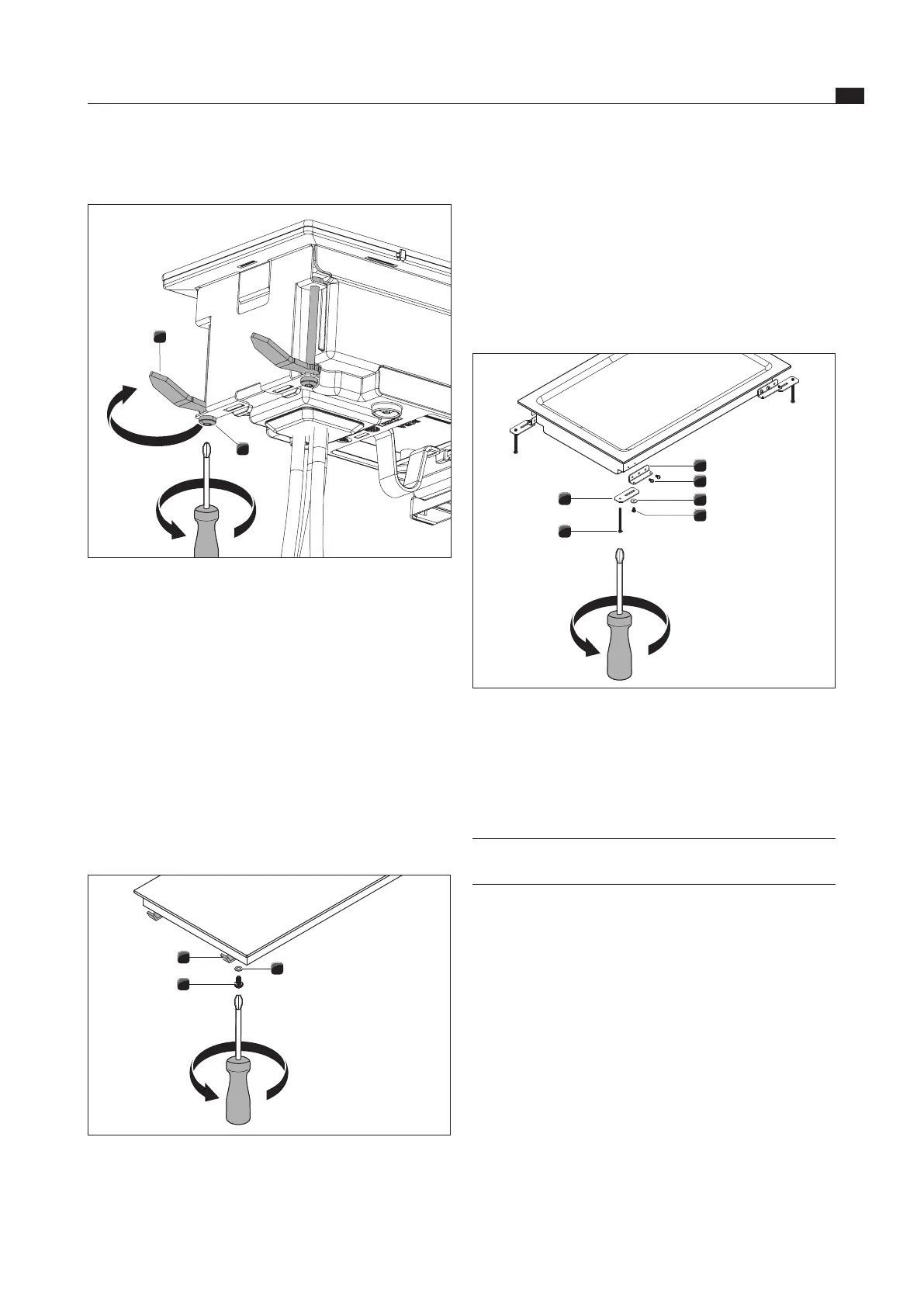

Fig. 4.27 Securing the cooktop extractor
[1] Tensioning screw
[2] Fixing bracket
Turn the four fixing brackets [2] under the worktop.
The fixing brackets are secured against slipping by a
ratchet mechanism.
Tighten the tensioning screws [1] with max. 2 Nm.
Do not use a cordless screwdriver or similar electrical
device to secure the cooktop extractor.
Check that the cooktop extractor is positioned correctly.
4.11.3 Securing the cooktops
Cooktops CKFI, CKI, CKIW, CKCH, CKCB
1
3
2
Fig. 4.28 Securing the cooktops
[1] Mounting brackets
[2] Washer
[3] Screw
Secure the cooktop using the mounting brackets [1].
To do this, tighten the mounting brackets with a screw
[3] using the washers [2] with max. 2 Nm.
Do not use a cordless screwdriver or similar electrical
device to secure the cooktops.
Check that the alignment and installation height are
correct.
Tepan stainless steel grill CKT
5
4
3
2
2
1
Fig. 4.29 Securing the Tepan stainless steel grill
[1] Angled plates
[2] Screws
[3] Washer
[4] Screw (60 mm)
[5] Mounting brackets
INFO Before the Tepan stainless steel grill can be laid in
the cut-out, the 4 angled plates [1] must be fitted.
Secure the cooktop using the mounting brackets [2].
To do this, tighten the mounting brackets with the
screws [3] and [4] using the washer [2] with max. 2 Nm.
Do not use a cordless screwdriver or similar electrical
device to secure the Tepan stainless steel grill
Check that the alignment and installation height are
correct.
