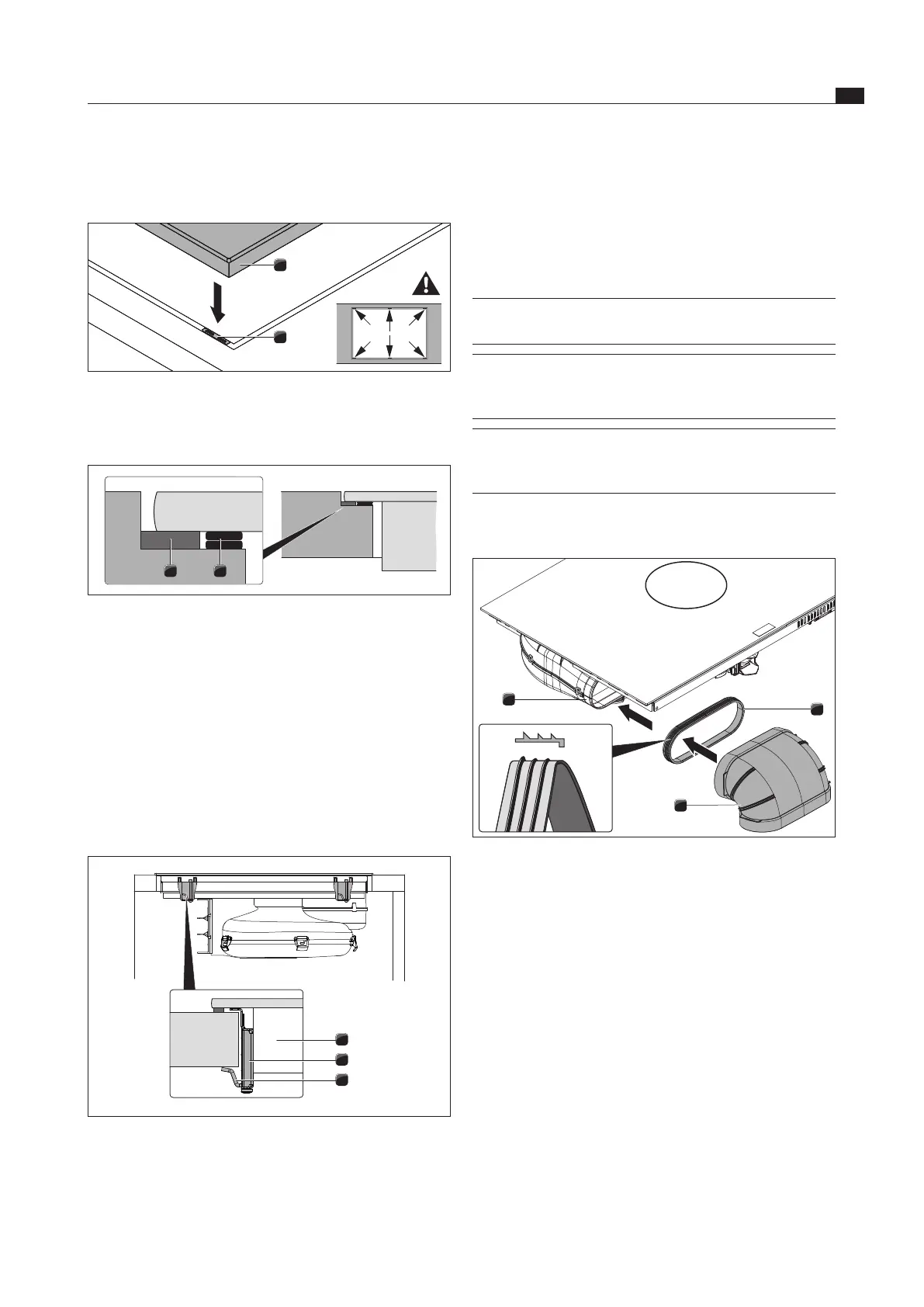

EN
31
Installation
www.bora.com
Secure the cooktop to the worktop [1] with the fixing
bracket [3] on the installation clamp [2] .
Tightening torque: max. 2.2 Nm.
6.6.5 Connecting the device to the duct
system
INFO The duct system must be fitted to the device free
of load and with the power supply switched off.
INFO For correct installation, the slide-in units of the
base cabinet must be shortened depending on the
installation situation.
INFO When attaching the seals, ensure that an airtight
seal is created with the connection duct piece
when the seals are compressed.
Use only BORA Ecotube duct parts.
Do not use flexible or fabric hoses.
1
3
2
Fig. 6.24 Connecting the duct system
[1] Seal
[2] Duct part
[3] Exhaust opening
Pull the seal [1] onto the exhaust opening [3] on the
device. The seal [1] will need to be stretched slightly.
Push the duct part to be connected [2] with the
coupling onto the exhaust opening [3] with the seal [1].
Ensure that the seal [1] is not displaced.
Height adjustment plates for flush
installation(optional)
2
Fig. 6.21 Inserting height adjustment plates
[1] Cooktop
[2] Height adjustment plate
1 2
Fig. 6.22 Height adjustment plates
[1] Sealing tape
[2] Optional height adjustment plates
The height adjustment plates are self-adhesive to
prevent slipping during installation.
If necessary, lay the height adjustment plates [2]
underneath.
Place the height adjustment plates next to the sealing
tape [2].
6.6.4 Securing the cooktop
1
2
3
Fig. 6.23 Securing the cooktop in the middle
[1] Cooktop
[2] Installation clamp
[3] Fixing bracket
