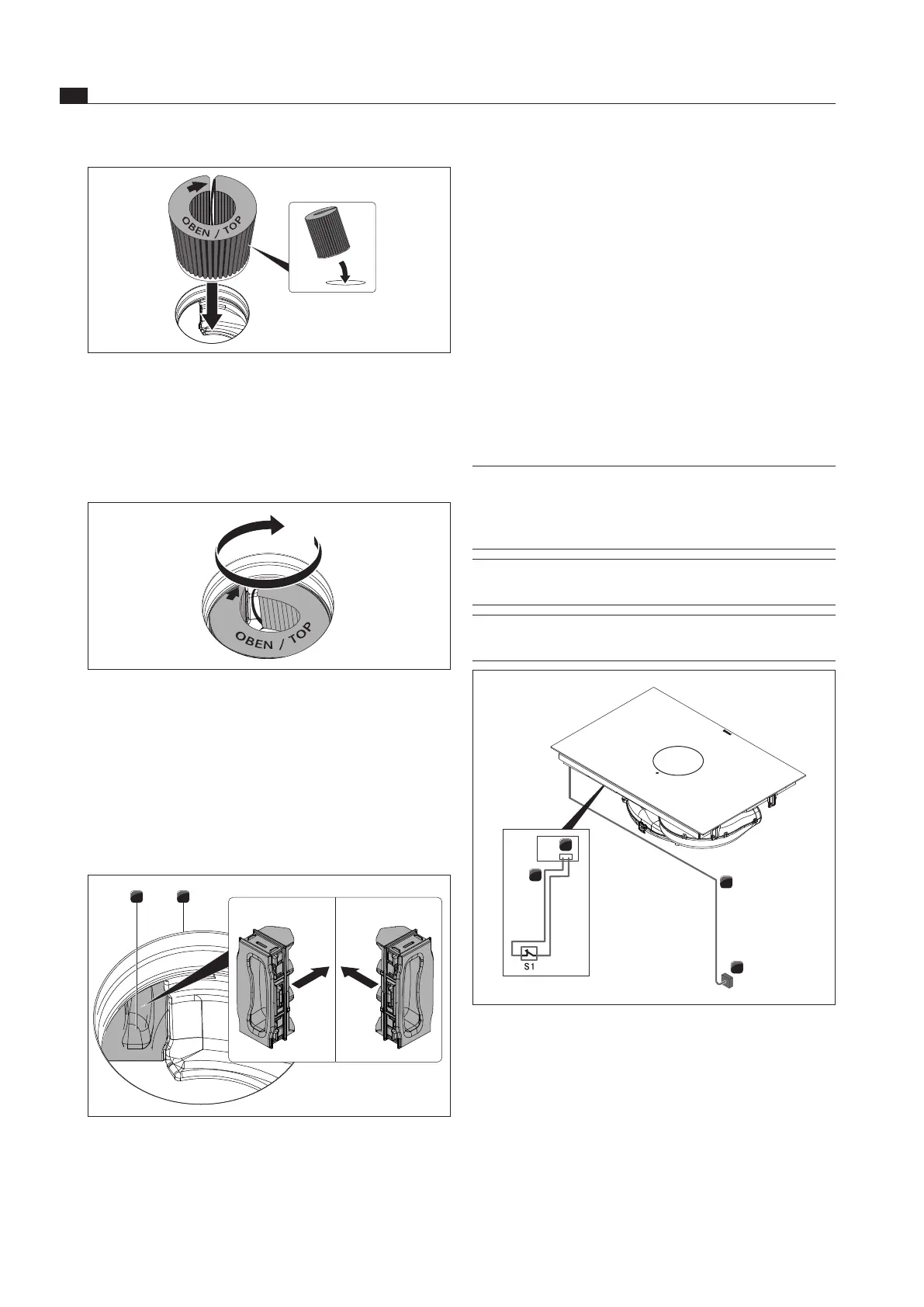

Fig. 6.40 Inserting the activated charcoal lter through the vent
opening
Tilt the activated charcoal filter towards you slightly
and insert it through the inlet opening.
Guide the left end of the filter into the opening in the
filter housing.
Fig. 6.41 Placing the activated charcoal lter in the end
position
Push the activated charcoal filter into the filter housing
until it will go no further (To do this, you can place one
finger between the slats and gradually push the filter
into the housing).
The end position of the activated charcoal filter is
reached when the filter has been fully pushed inside
the filter housing.
2
1
Fig. 6.42 Inserting the lter replacement cover
[1] Filter replacement cover
[2] Inlet opening
Inside the inlet opening, push the filter replacement
cover until it comes to a stop in the filter housing
opening.
Check that the filter replacement cover is positioned
correctly.
6.8 Establishing the power
connection
Observe all safety and warning information (see the
Safety chapter).
Observe all national and regional laws and regulations
as well as the supplementary regulations of the local
utility companies.
INFO The power connection may only be established by
certified specialists. The specialist also assumes
responsibility for the proper installation and
commissioning.
INFO Connections via plug-in contacts (Schuko plugs)
are not permitted.
INFO 1-phase connection The device complies with the
requirements of IEC 61000-3-12.
1
2
3
4
Fig. 6.43 Connection diagram with optional Home In module
[1] Cooktop and cooktop extractor power supply cable
[2] Power supply
[3] Home In module PUHIM (not included in scope of delivery)
[4] Home In connection cable
[S1] External switch contact
Switch off the main switch/automatic circuit breaker
before connecting the cooktop.
Secure the main switch/automatic circuit breaker
against being switched back on without permission.
Make sure the power to the appliance is disconnected.
