10.3 AS400 Interface (Option)
Except for the communication protocol as mentioned above, this
series of UPS has AS400 card (an optional accessory) for AS400
communication protocol. Please contact your local distributor for
details. The following is the pin assignment and description of DB-9
connector in AS400 card.
Pin #
Description I/O Pin #
Description
I/O
1 UPS Fail Output
6 Bypass Output
2 Summary Alarm
Output
7 Battery Low Output
3 GND Input 8 UPS ON Output
4
Remote
Shutdown
Input 9 Line Loss Output
5 Common Input

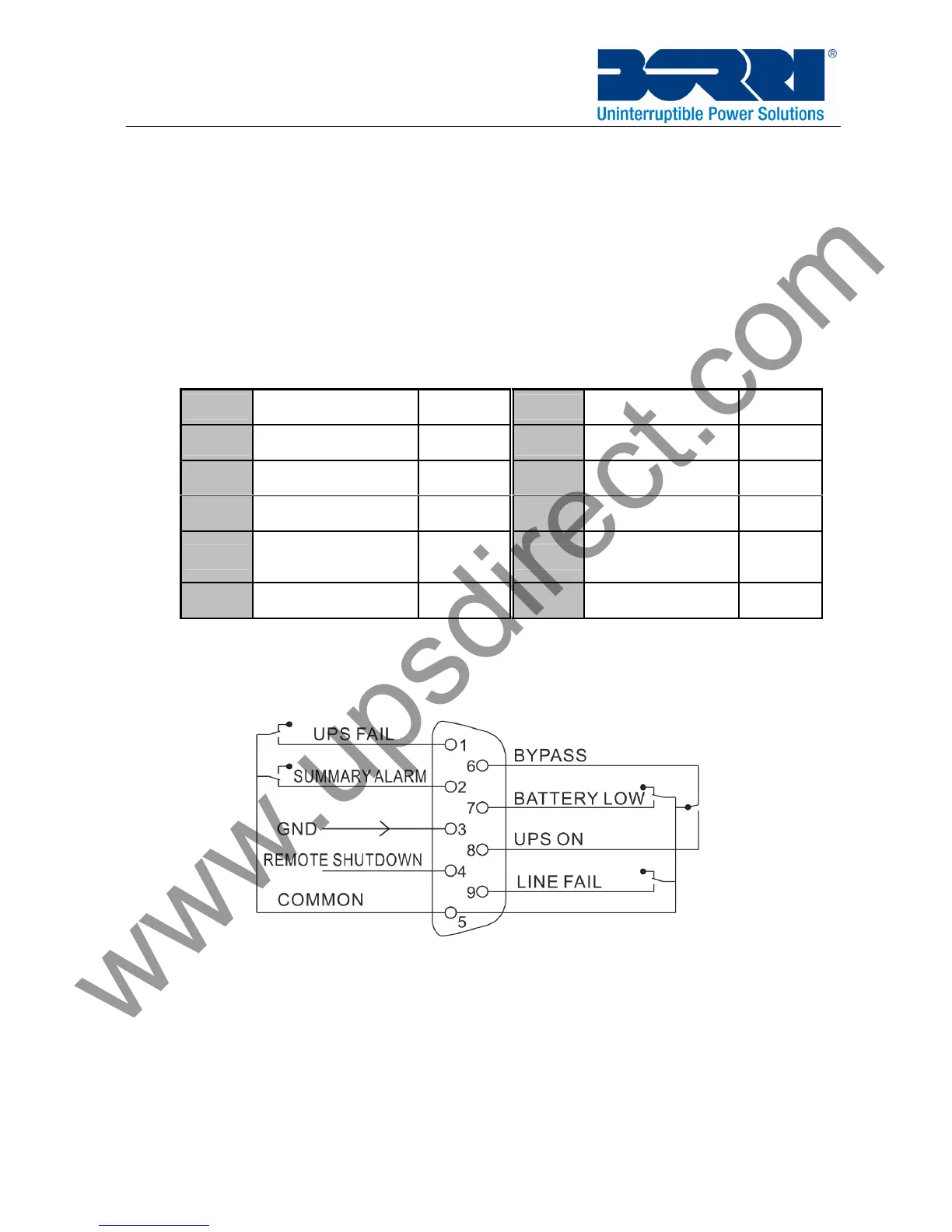

DB-9 Interface of AS400 communication protocol
