AMC2 Modular
Controller
Introduction | en 15
Bosch Access Systems GmbH 2018-09 | AMC2-4W_UL |
The AMC2-4W electronics are completely covered by a plastic
housing. The liquid crystal display provides all important status
information.
Using the AMC2-4W gives you the full functionality and the
offline capability of a complete access control system in each
room. This leads to an excellent reliability and a very high
redundancy without extra cost.

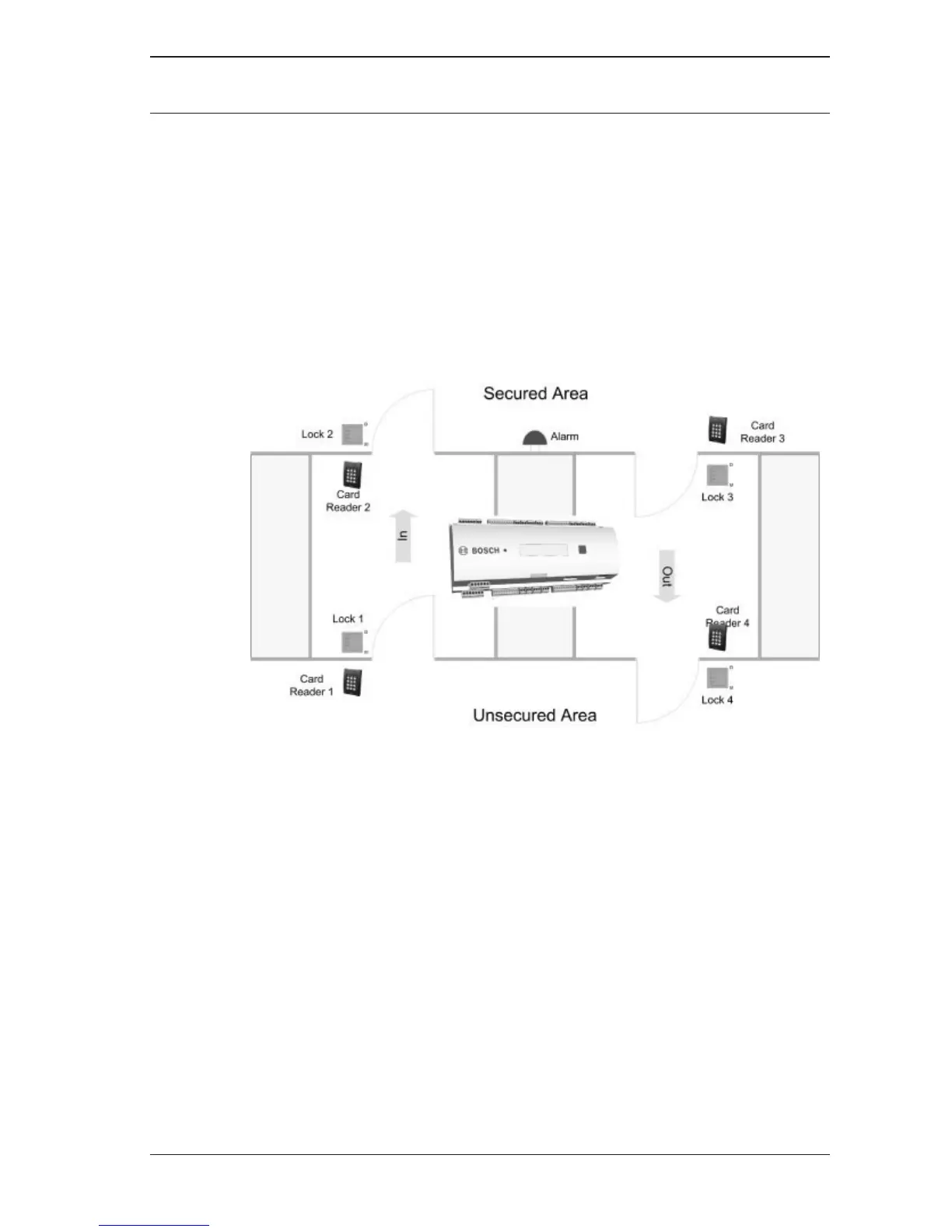

Figureî3.2: The AMC2-4W in a four door safety lock
The AMC2-4W can communicate upstream to the host computer
using 10/100 Mbit/s Ethernet. It has eight analog input devices
and eight relay outputs. With its analog input devices, the
AMC2-4W verifies, for example, if a lock is closed or open. The
relay outputs can be used to activate lock mechanisms if access
is granted, or activate the burglar alarm system if an intrusion or
system alert is detected. If the eight inputs and eight outputs on
board are not enough to configure the system, up to three
additional extensions (AMC2-8IOE, or AMC2-16IOE) can be
connected. The extensions offer 8 or 16 additional inputs and
outputs.
