Bosch APC-AMC2-4WCF User Manual

44 en | Installing
AMC2 Modular
Controller
2018-09 | AMC2-4W_UL | Bosch Access Systems GmbH
4.13 Tamper Protection
To protect the AMC2-4W against unauthorized access and so
prevent tampering with sensitive data, the AMC2-4W provides
an additional interface to connect external tamper contacts.
This interface is a potential-free 2-pin pluggable screw
connector marked with T. When not in use this tamper contact
should be shorted.

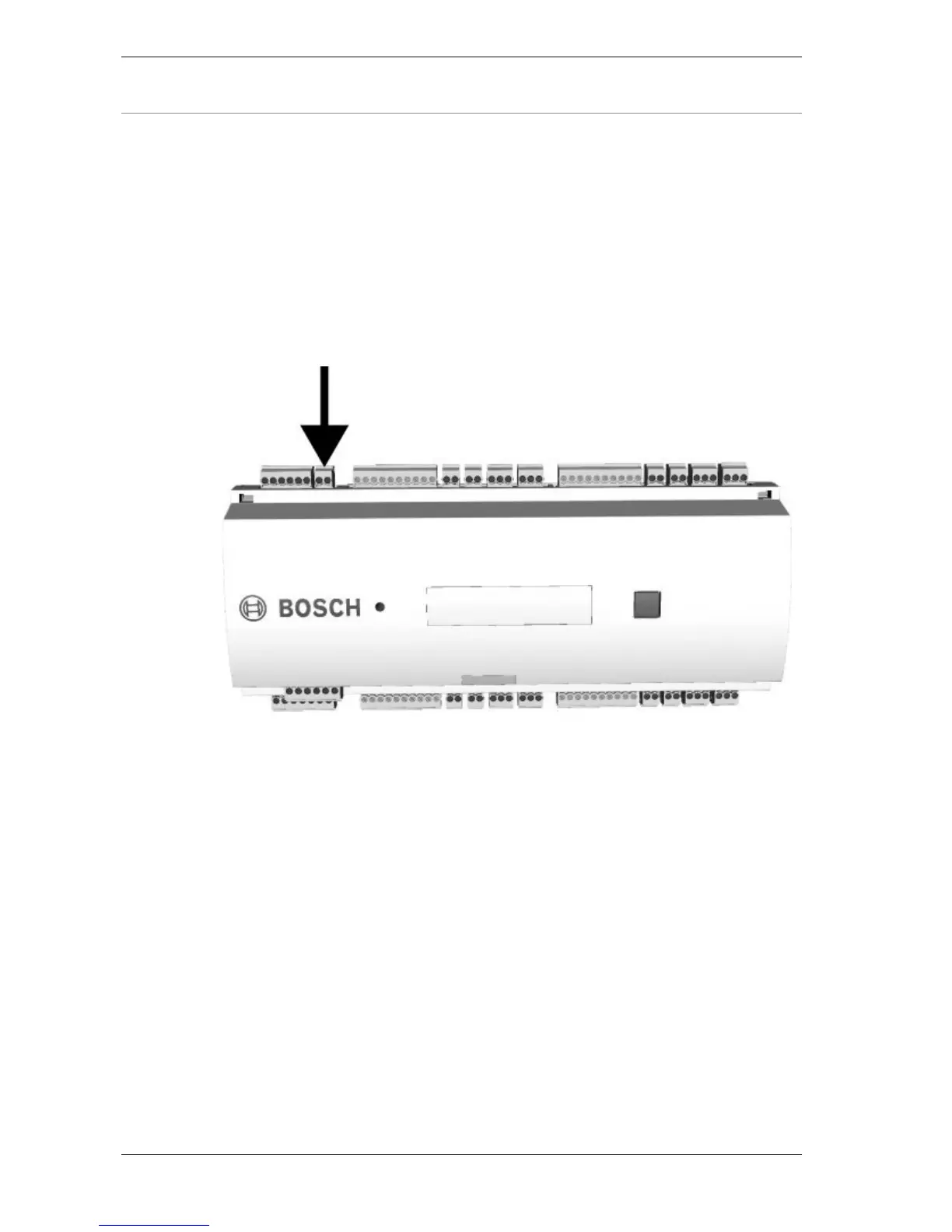

Figure4.16: Location of the tamper protection contact

Bosch APC-AMC2-4WCF Specifications

General

Brand	Bosch
Model	APC-AMC2-4WCF
Category	Controller
Language	English
