3.4 System Overview
The Access Controller AMC2-4W is connected between the
management host system and different peripheral devices. A
management host system is connected using Ethernet.

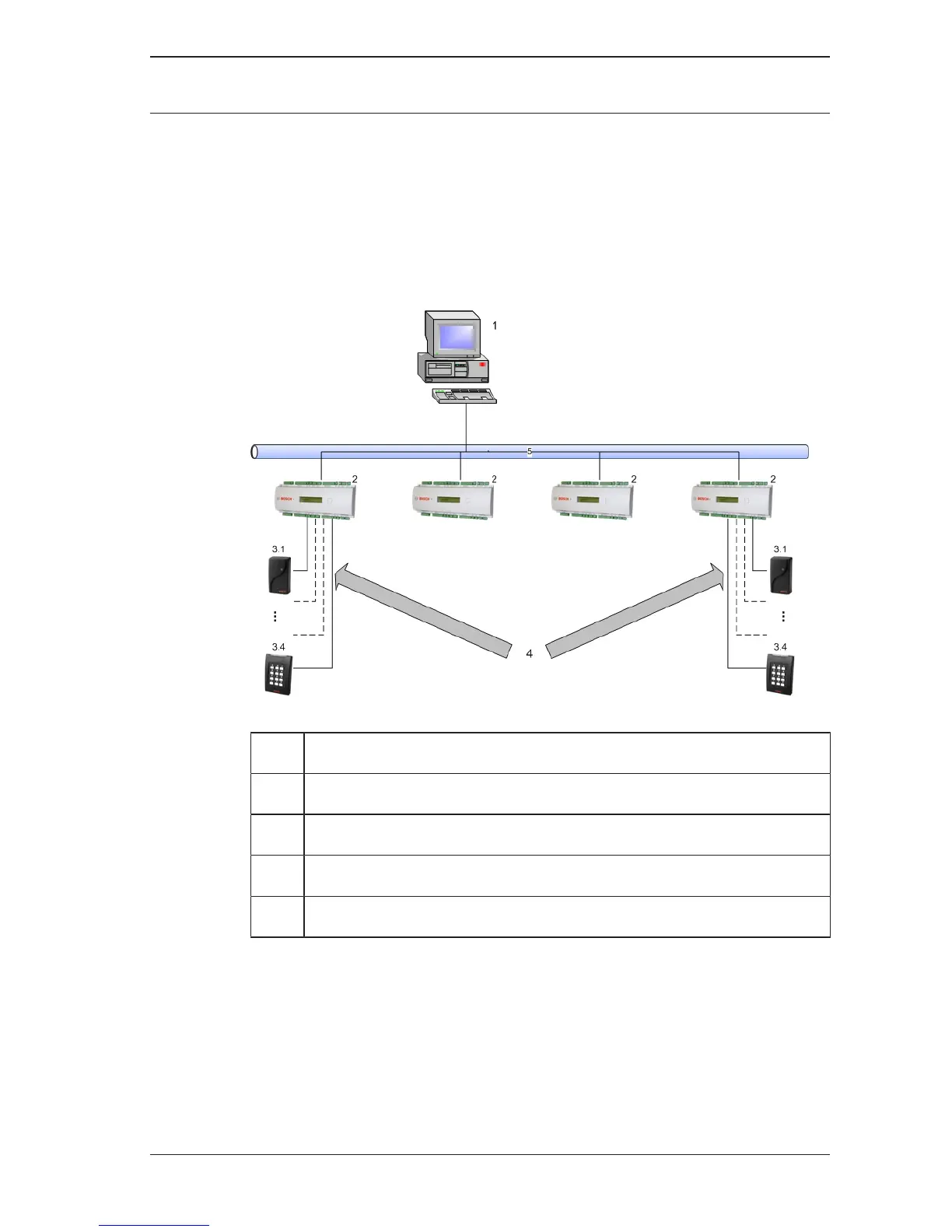

Figure3.6: System overview
1 = Host
2 = AMC2-4W
3 = Wiegand reader (1 - 4)
4 = Communication and power supply
5 = Ethernet
System configurations for Access Control applications
The minimum configuration consists of:
– one PC with access control software
– one AMC2-4W controller
– one Bosch APS-PSU-60 power supply
– one AMC2-UL01 enclosure
The maximum configuration consists of:
