66 en | Appendices
AMC2 Modular
Controller
2018-09 | AMC2-4W_UL | Bosch Access Systems GmbH

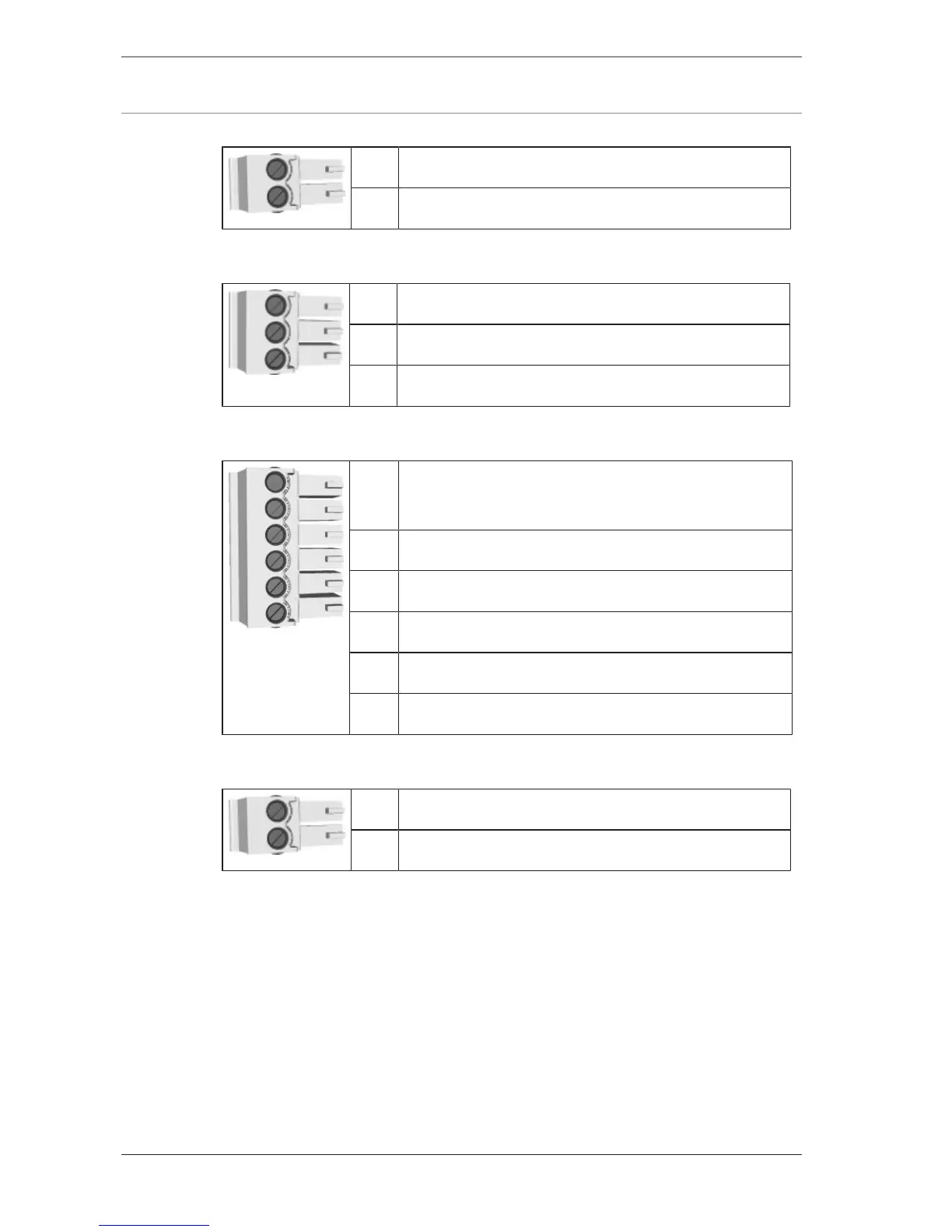

1 Analog Input, in
2 Analog Input, out
Tab.8.5: Analog input
1 Relay Output, normally open
2 Relay Output, common
3 Relay Output, normally closed
Tab.8.6: Relay output
1 Power supply for external devices (10V -
30V)
2 Power supply for external devices (0V)
3 Shield
4 Data RxTx+
5 Data RxTx-
6 Ground (PAG)
Tab.8.7: Host / Extension interface
1 Tamper Contact, in
2 Tamper Contact, out
Tab.8.8: External tamper contact
