8. Attach the mounting plate (supplied with Dome) to the dome mounting cap with the sup-
plied three (3) screws. Ensure that the mounting plate’s front end, as labeled on the
plate, is screwed to the first front thread as seen in Figure 2.6.

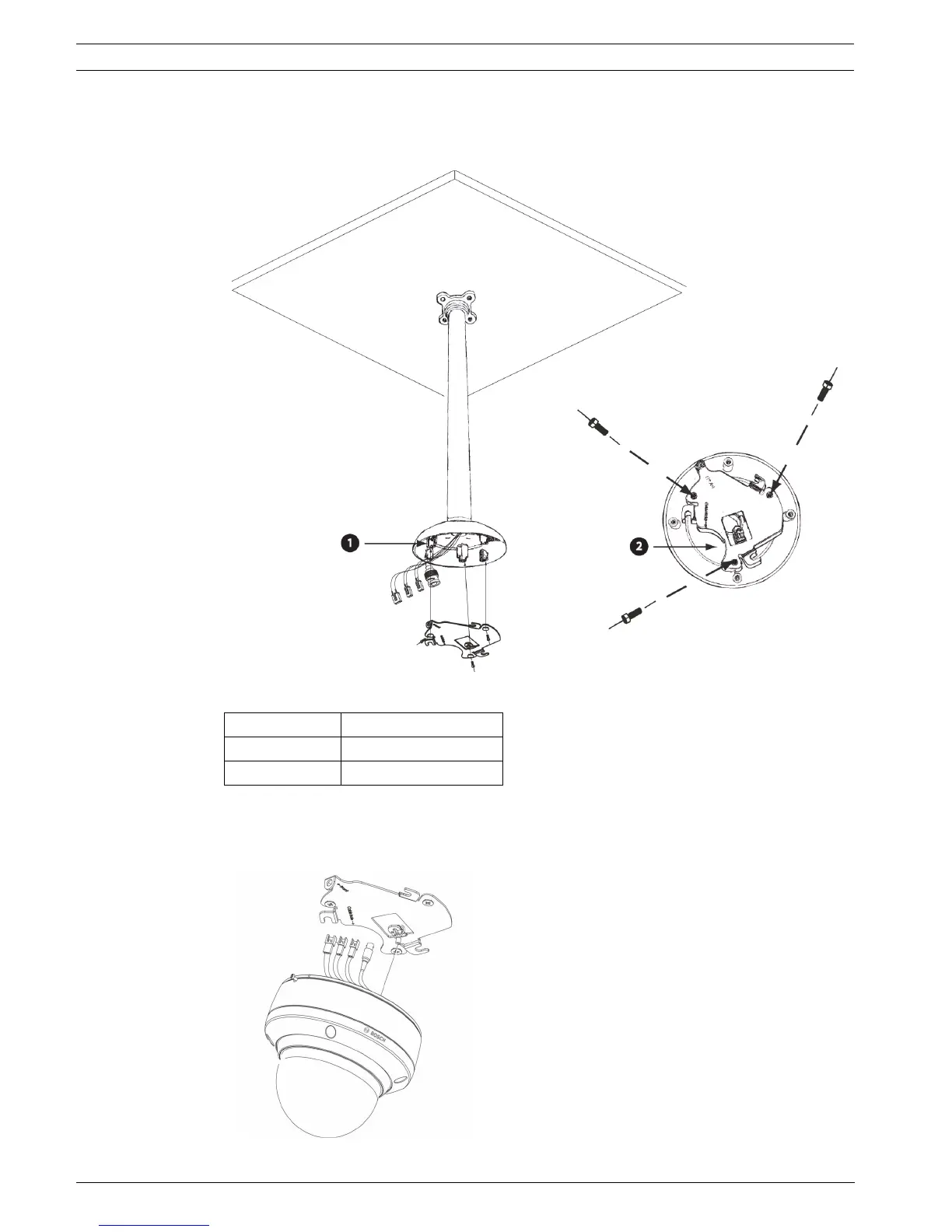

Fig. 2.6 Attaching the mounting plate to the dome cap
9. Connect all wires to the camera.
10. Pull excess wire back into the mount tube.
11. Hang the dome camera to the mounting plate using the safety wire.
Fig. 2.7 Hanging the safety wire to the mounting plate
Reference #
Description
1
Align “front” of plate here
2
Feed wires through here
