2 en | Installation AutoDome Easy Mount
F01U064856 | 1.0 | 2007.03 Instruction Manual Bosch Security Systems
2 Installation
This installation should be made by qualified service personnel and conform to the National
Electrical Code and applicable local codes.
2.1 Installing the Wall Mount
1. Determine a secure location for the wall mount.
2. Use the mount as a template to mark the location of the mount holes.
3. Drill holes for the anchors (not supplied, use a minimum of 4 mm (.15 in.)).
4. Install the anchors into the wall.
5. Drill a fifth hole (maximum of 30 mm) in the center of the four-hole pattern used to
mount the flange. Use this hole to feed the wires through the mount.
6. Attach mounting cap to the arm.
7. Pull all wires from the wall through the feed through tube.
8. Attach the mount to the wall with the appropriate hardware (not supplied).

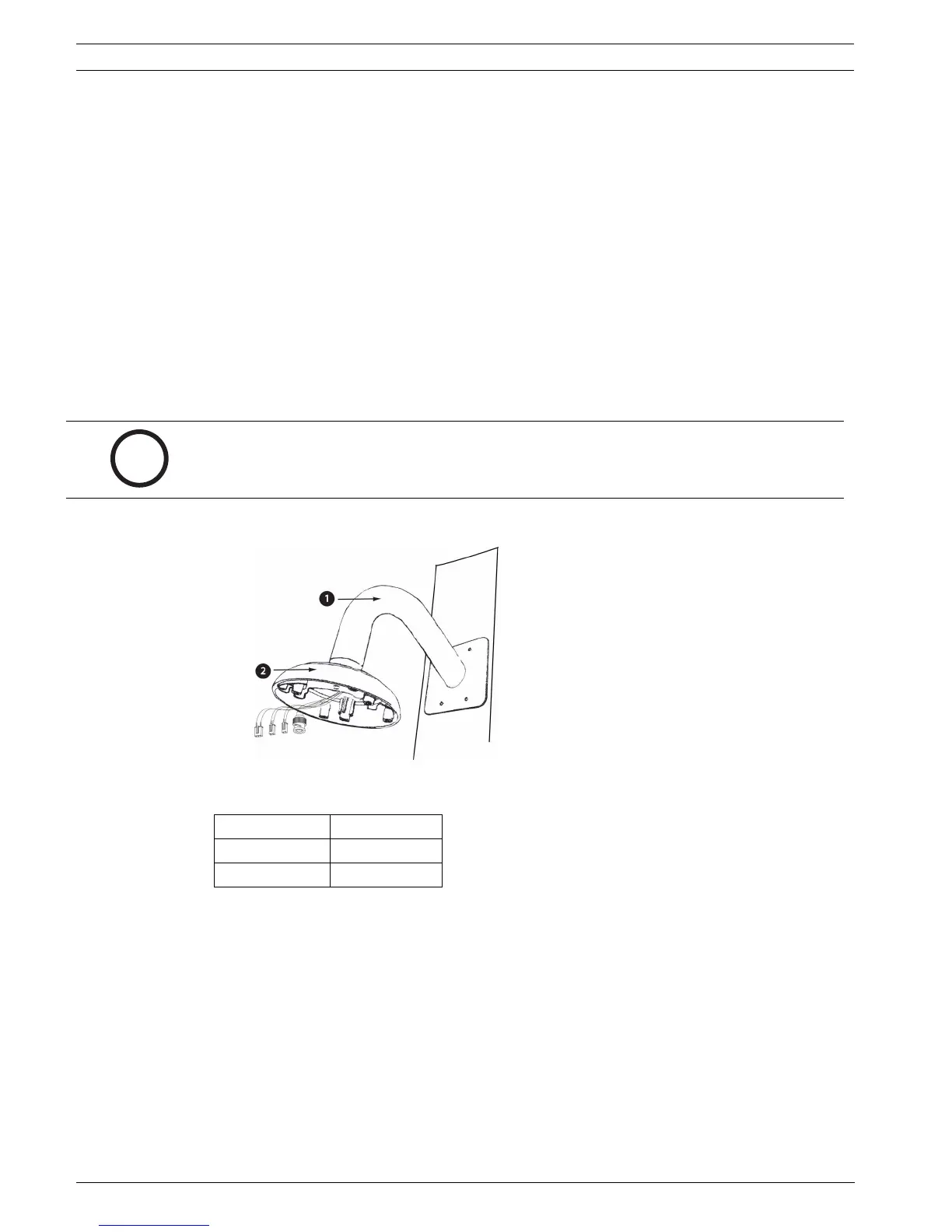

Fig. 2.1 Attaching the mount to the wall
i
NOTICE! The fasteners and mounting surface must be capable of supporting a maximum load
of 11.33 Kg (25 pounds).
Reference #
Description
1
Arm
2
Cap
