System overview

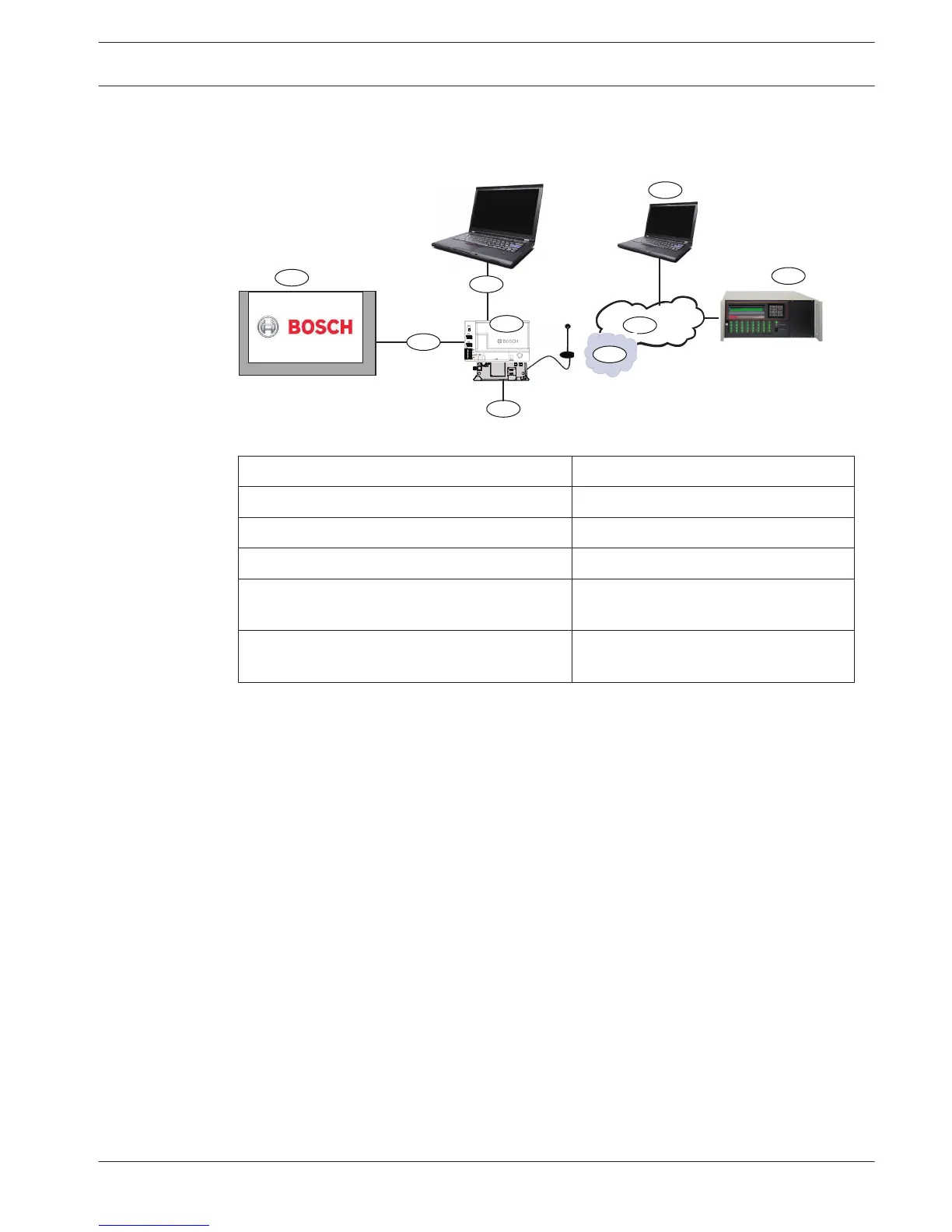

Refer to the graphic below for the complete B450 system configuration.
1
2
7
8
9
5
6
3
4
B450 system connections overview
Callout ᅳ Description
Callout ᅳ Description
1 ᅳ Compatible Bosch control panel 6 ᅳ Cellular carrier network
2 ᅳ Panel data bus (SDI2 , SDI, or Option) 7 ᅳ Internet/LAN/WAN
3 ᅳ B450 8 ᅳ Remote Programming Workstation
4 ᅳ USB direct connection for B450
configuration (if required)
9 ᅳ Bosch Conettix IP receiver (D6600,
D6100i, or D6100IPv6)
5 ᅳ B44x Plug-in Cellular Communicator
(required and available separately)
Module overview
The B450 Conettix Plug-in Communicator Interface (wired to a compatible control panel) is a
four-wire powered SDI2, or SDI device that provides two-way communication over commercial
cellular networks using a plug-in communicator.
The B450 Conettix Plug-in Communicator Interface bus address switch determines the bus
address of the device. When required, configuration of the module is managed through the
control panel, a local USB connection, or using SMS.
