Installation Instructions
12
|
Climate 5000 Series Gen 3 Wired Wall Thermostat (02.2022)
For 4-Way Cassette and Concealed Ducted Indoor Units

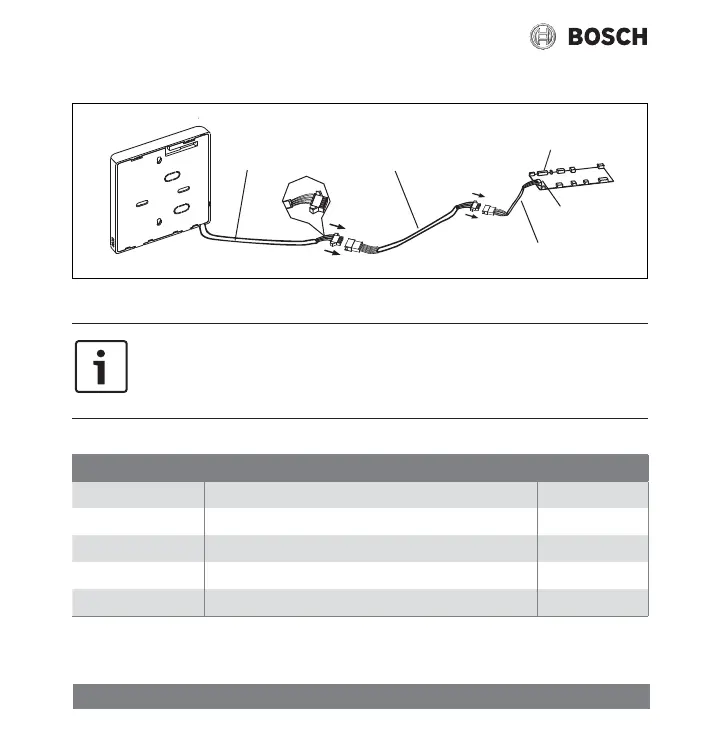

Figure 6
Mainboard
4-core shielding wire
The connection cable A (20ft)
CN40
The connection cable E
Do not install the wired wall thermostat where it can be aff ected by:
Direct hot or cold air from ducts
Drafts or dead spots behind doors and corners
Direct sun light contact area
Name Description Comes With
Connection Cable A The 20ft cable 120X1 & 120X2
Connection Cable B The 4-core wire between Cable A and CN41/CN42 120X1
Connection Cable C The 3+4 core wire between
CN18 and CN40 and CN
1 120X1
Connection Cable D The 2-core wire between CN32 and CN43 120X1
Connection Cable E The 4-core wire between Cable A and CN40 120X2
Table 4
To Next Page
