Installation Instructions
Climate 5000 Series Gen 3 Wir
ed Wall Thermostat (02.2022)
|
19
6.
7 Con
nec
tio
n Gui
de to In
door U
nit
s
6.7.1 For W
all Mounted Units
1.

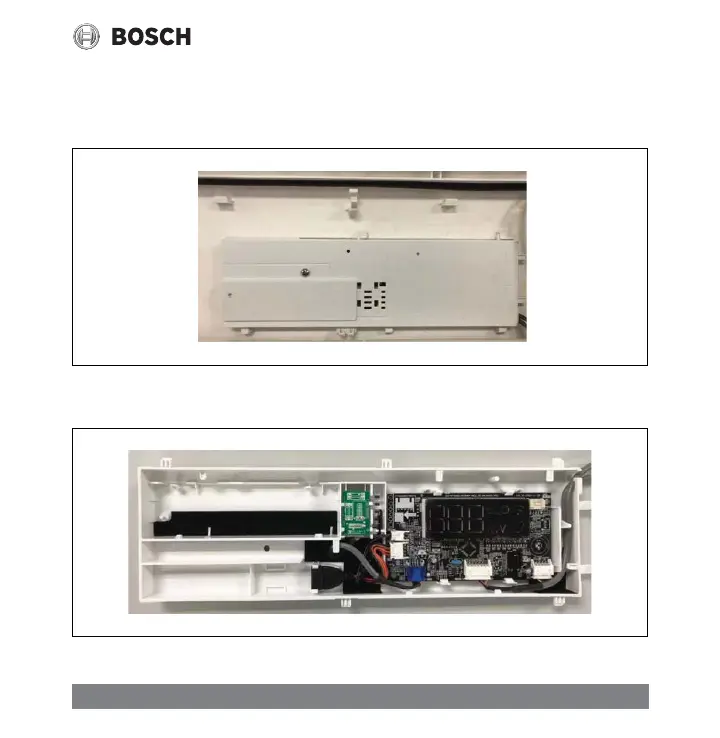

Open the front panel of the Wall Mounted Unit and locat
e the display board brack
et shown below
.
Figur
e 14
2.
Remove the brac
ke
t from the units fr
ont panel.
Figur
e 15
18
20
