7.9 Swing Function
Louver Up-Down (applicable to Wall mounted and Cassette Indoor models only)
1. Press the SWING button to start the automatic swing function.
2. Press the SWING button again to stop the automatic swing function. The louver
swings by six degrees every time when the SWING button is pressed.
3. When the Up-Down auto swing mode is activated, the fan swing icon will appear on the
display.
Louver Left-Right (applicable to Wall Mounted indoor units only)
1. Press and hold the SWING button for 2 seconds to activate the Left-Right auto swing
feature.
2. Press the SWING button again to stop the auto swing feature. The louvers swing six
degrees each time the Swing button is pressed
Individual Louver Function
1. Press the SWING button
2. Use the or buttons to select the desired louver to adjust in the following sequence
(-0 corresponds to all four louvers).

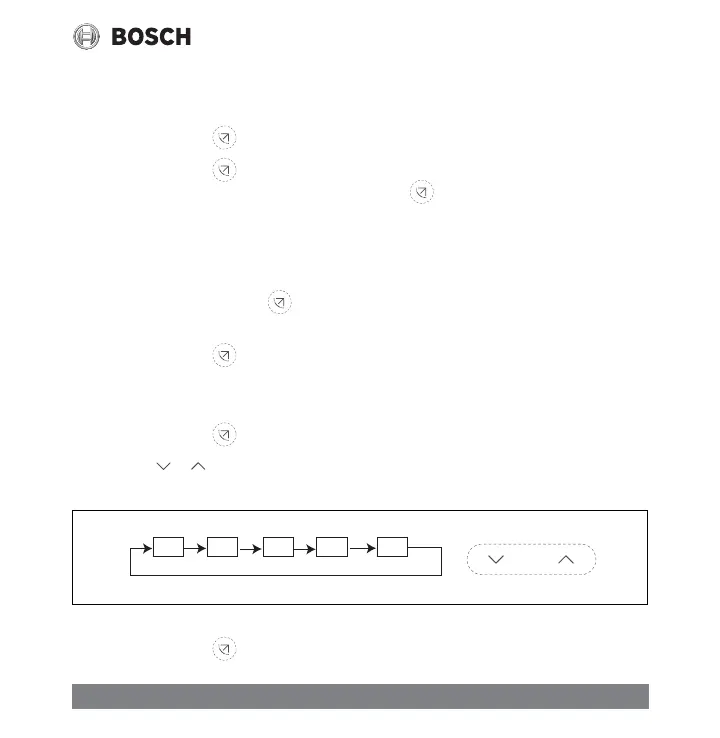

Figure 36
-0
-1
-2
-3
-4
3. Press the SWING button to adjust the airfl ow direction of the selected louver.
