Installation Instructions
30
|
Climate 5000 Series Gen 3 Wired Wall Thermostat (02.2022)
6.7.3 For Ducted Units
1. Remove the cover of the Electronic Control Box.

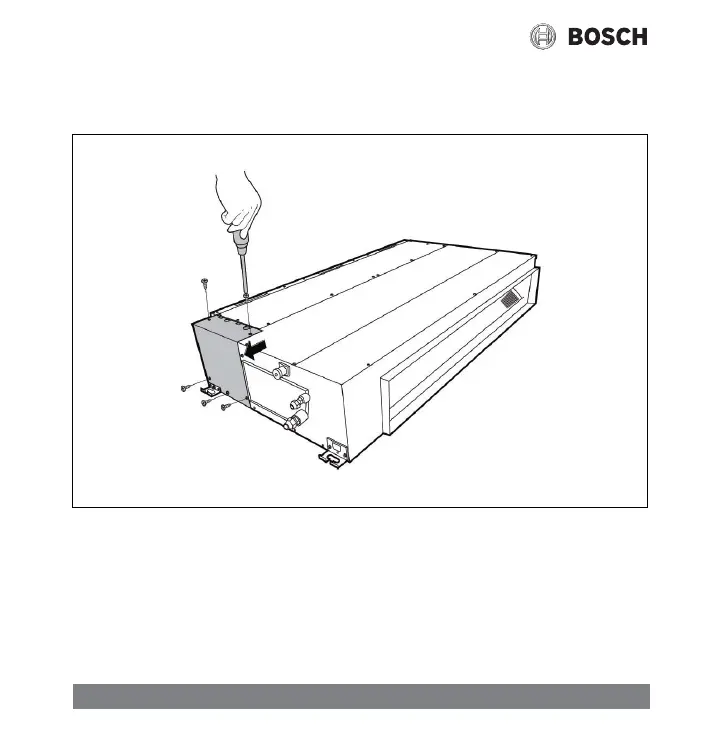

Figure 29 Remove the cover of the Electronic Control Box
