Installation Instructions
20
|
Climate 5000 Series Gen 3 Wired Wall Thermostat (02.2022)

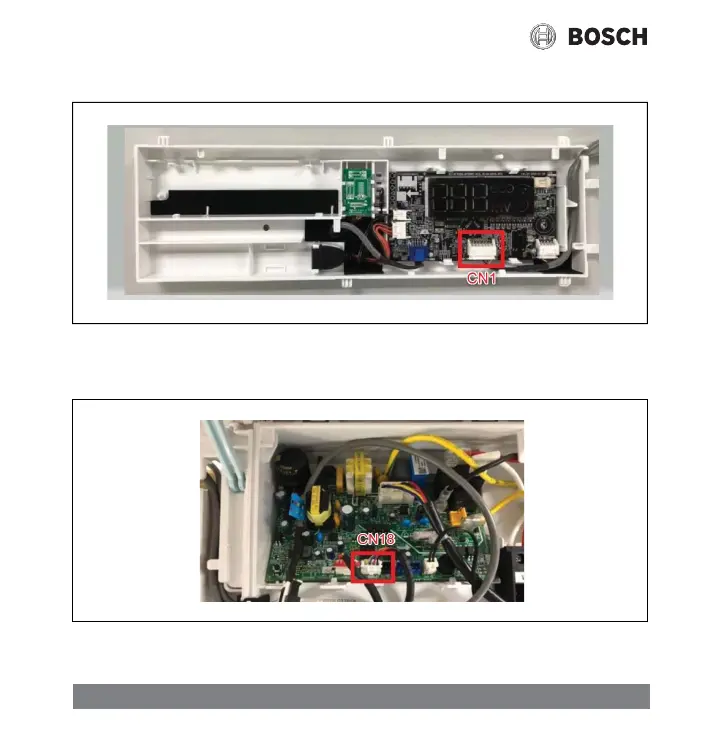

3. Disconnect the wire from CN1 port on the display board.
Figure 16
4. Disconnect the wire from CN18 port on the unit’s main control board shown below.
Figure 17
