Technical information
31
Compress 3000 AWES – 6720892204 (2020/06)
11.3.5 400 V~ 3N indoor unit with 400 V~ 3N outdoor unit

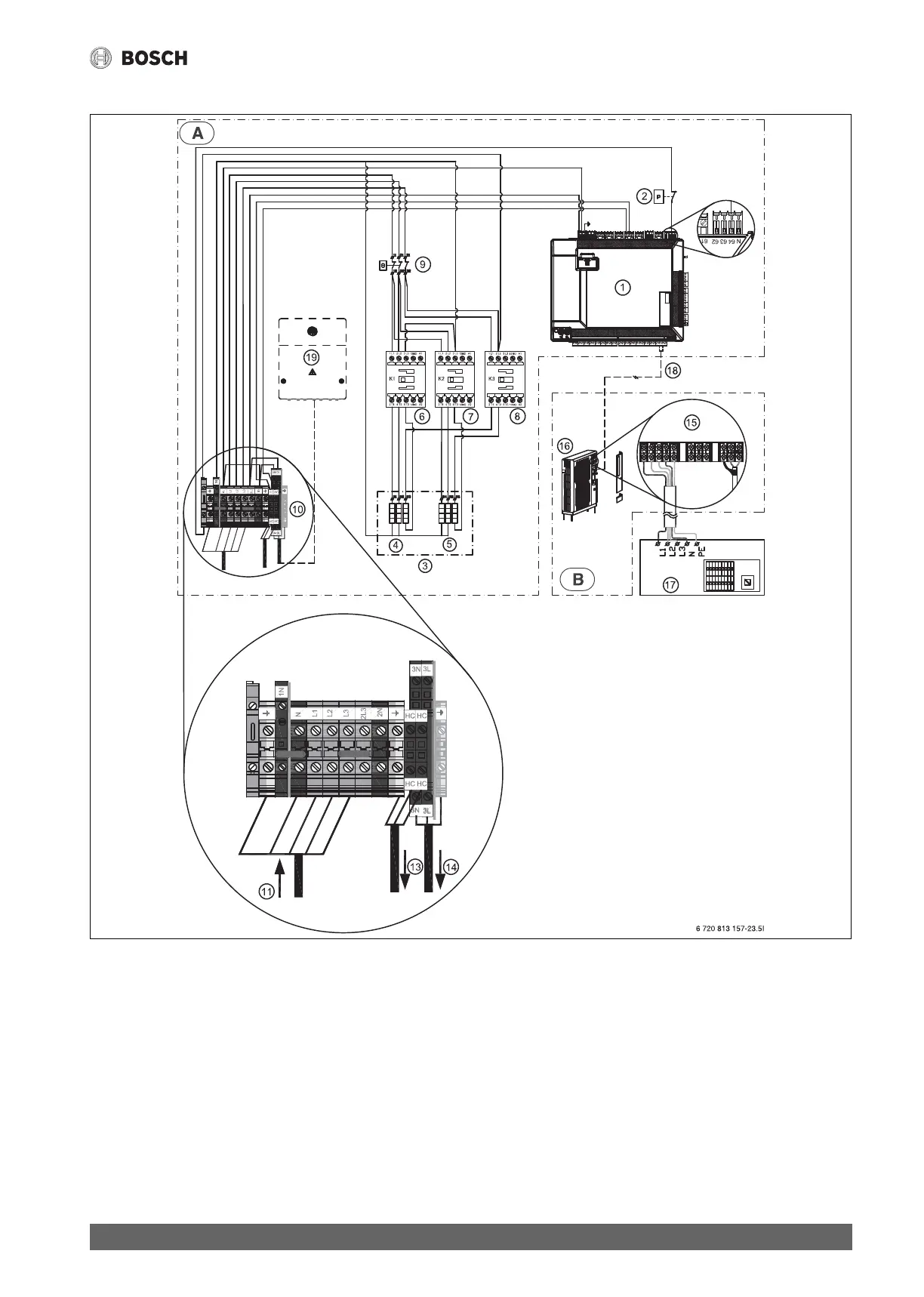

Fig. 33 400 V~ 3N indoor unit with 400 V~ 3N outdoor unit
[A] indoor unit
[B] outdoor unit
[1] Installer module SEC 20
[2] Pressure switch
[3] 9 kW electric heater
[4] 3x1 kW (3x53 Ω)
[5] 3x2 kW (3x27 Ω)
[6] Relay 1 (K1)
[7] Relay 2 (K2)
[8] Relay 3 (K3)
[9] Overheating protection
[10] Indoor unit terminals
[11] 400 V ~3 N power supply for indoor unit
[13] 230 V ~1 N power supply for heating cable
[14] 230 V ~1 N power supply EMS (additional)
[15] Outdoor unit terminals
[16] outdoor unit
[17] 400 V ~3 N power supply for outdoor unit
[18] Screened CAN bus line 2 x 0.75mm
2
[19] EMS module (accessory)
