D1265 | Installation Guide | 1.0 Introduction
.
Bosch Security Systems, Inc. | 11/11 | F01U169129-05 3
1.0 Introduction
1.1 Overview
The D1265 Touchscreen Keypad is an SDI bus device
and it is compatible with the Bosch GV2, GV3, and
later, families of control panels:
D9412GV3, D7412GV3, and D7212GV3
D9412GV2, D7412GV2, and D7212GV2

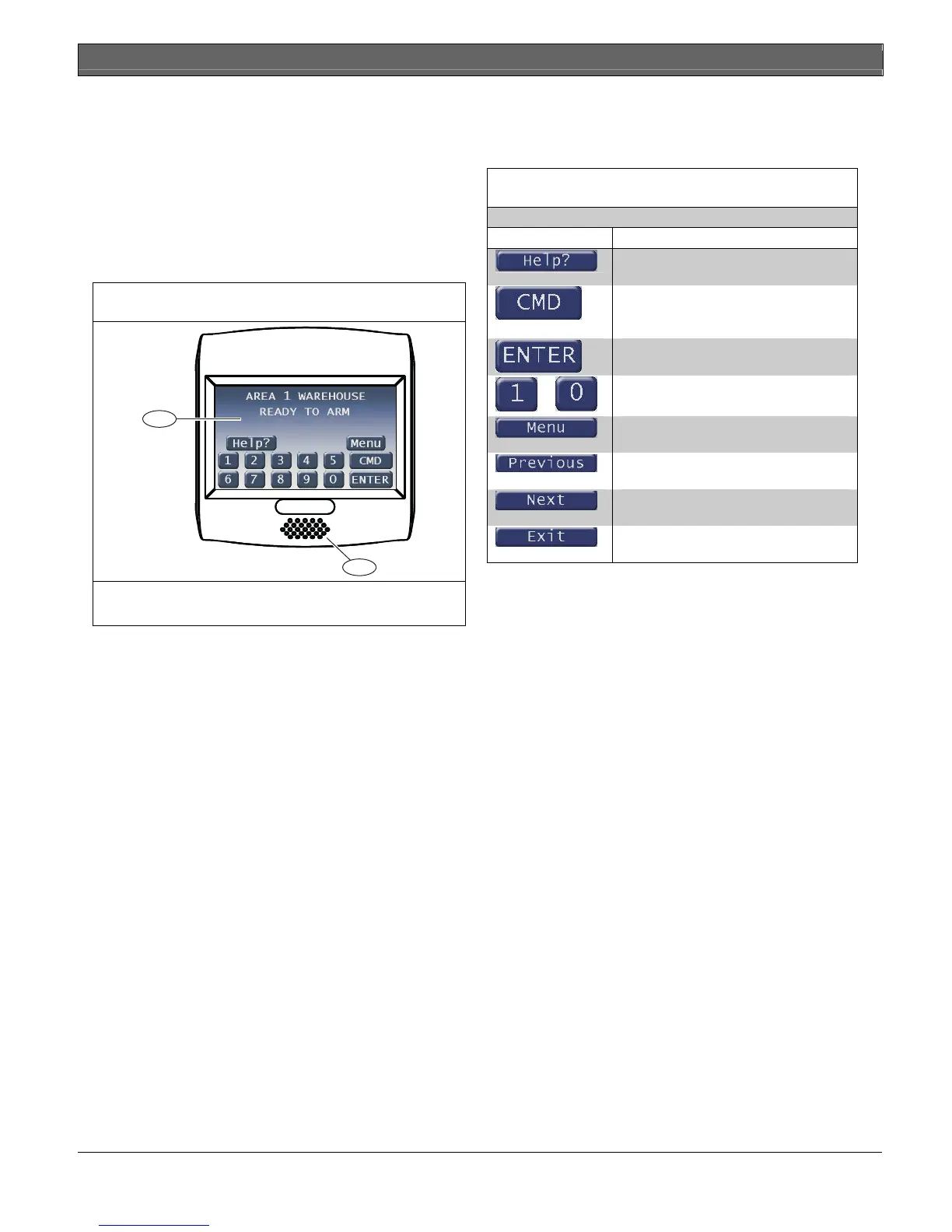

Figure 1: D1265 Touchscreen Keypad
1
2
1 - Touchscreen area
2 - Speaker
The control panel supplies all power and data
requirements for the D1265 through a four-wire
connection. To determine if you need an additional
power supply, refer to the Current Rating Chart for
Standby Battery Calculations provided in the approved
applications compliance guide for the specific control
panel used with the D1265.
1.2 Graphical Buttons
Refer to Table 1 for descriptions of the D1265’s
graphical buttons.
Table 1: Graphical Button Descriptions
Graphical Button Description
Press this button to see onscreen
help instructions.
Press this button in combination with
one or two numeric buttons to
perform a function.
Press this button to complete the
entry of your passcode at the keypad.
to
Press these buttons to enter numeric
values.
Press this button to see a list of
available functions.
Press this button to scroll back
through the function menu.
Press this button to scroll forward
through the function menu.
Press this button to exit the function
menu.
