Bosch D1265 - 2 Installation

D1265 | Installation Guide | 2.0 Installation
.
Bosch Security Systems, Inc. | 11/11 | F01U169129-05 5
2.0 Installation
The D1265 Touchscreen Keypad is a low-profile,
surface-mounted unit.
Avoid installing the D1265 in direct
sunlight. Direct sunlight can interfere with
display screen visibility, and can damage
internal components.
Avoid installing the D1265 in wet or moist
locations.

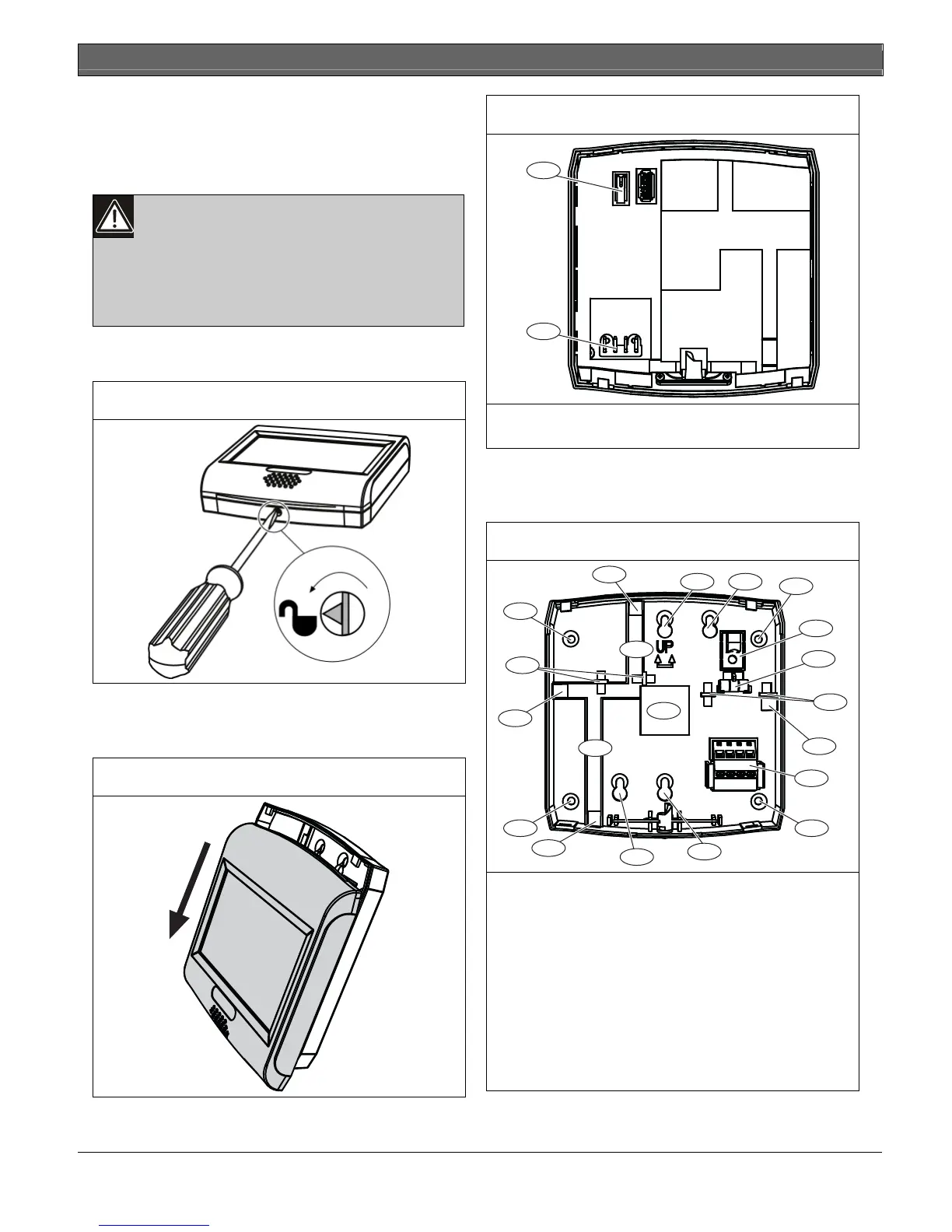

1. Unlock the keypad by turning the lock
counter-clockwise. Refer to Figure 2.
Figure 2: Unlock the Keypad
2. Hold the keypad by the base in one hand. With
the other hand, gently push down on the keypad to
remove it from the base. Refer to Figure 3.
Figure 3: Remove the Keypad from the Base
Figure 4: D1265 Keypad (Back view)
1
2
1 - Tamper switch
2 - Terminal block connectors
3. Use the base as a template to mark the desired
mounting surface. Refer to Figure 5 for mounting
hole and wiring locations.
Figure 5: D1265 Base
4
6
1
1
1 1
2
2
3
3
5
5
5
5
6
9
9
7
8
10
1 - Wall mount holes
2 - Single gang box holes
3 - Dual gang box holes
4 - Wire opening
5 - Alternate wire openings
6 - Wire channel
7 - Tamper switch knockout
8 - Bubble level
9 - Wire tie posts
10 - Terminal block
