D1265 | Installation Guide | 3.0 Setup Menu
6 Bosch Security Systems, Inc. | 11/11 | F01U169129-05
4. Pull the wiring through the desired wire opening in
the base.
5. Use the appropriate mounting hardware (not
supplied) to mount the base to the desired
mounting surface.
6. Connect the keypad to the control panel as shown
in Figure 6.

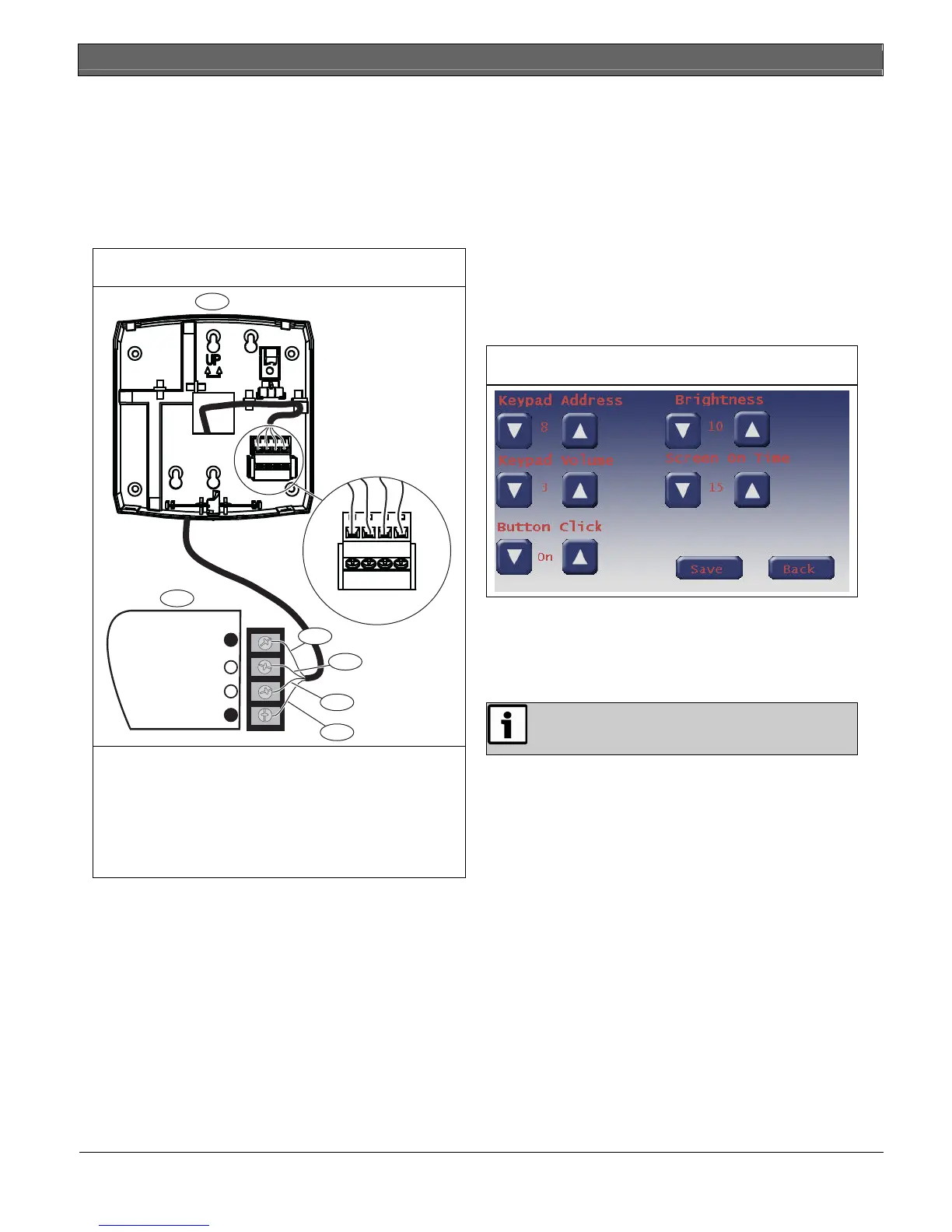

Figure 6: Wire Connections
1
2
EVICE CONNECTIONS
29
32
31
30
POWER +
DATA BUS A
DATA BUS B
COMMON
RYGB
3
4
5
6
1 - D1265 Base
2 - Control panel peripheral device terminals
3 - POWER + to R wire connection
4 - DATA BUS A to Y wire connection
5 - DATA BUS B to G wire connection
6 - COMMON + to B wire connection
7. Reconnect the keypad to the base by sliding the
keypad onto the base (reverse of Step 2). The
keypad automatically locks onto the base.
8. Apply power to the system.
3.0 Setup Menu
To enter the setup menu, press and hold the 0 button
for at least 5 sec. The setup menu opens.
Use the D1265’s setup menu to:
Set the keypad’s SDI Bus address
Adjust the keypad volume and display
brightness
Turn the button click tone on or off
Set the screen on-time
Figure 7: D1265 Setup Menu
3.1 Set the Keypad SDI Bus Address
To set the keypad’s SDI Bus address, press the Up or
Down arrow buttons until you reach the desired
address (1 to 32).
Each SDI bus device must have a unique
address assigned to it.
3.2 Adjust the Keypad Volume and
Display
3.2.1 Adjust the Keypad Volume
To adjust the keypad’s volume, press the Up or Down
arrow buttons until you reach the desired level
(0 = silent; 10 = loudest).
This setting only applies to normal interaction with the
keypad. Alarms always sound at the loudest volume
setting.
3.2.2 Turn the Button Click On or Off
To turn the button “click” tone on, press the Up arrow
button. To turn the button “click” tone off, press the
Down arrow button.
