Figure 5 shows a parallel printer connected to the
serial output of the DX4010V2. This type of
connection requires the use of a serial to parallel
converter, such as the BlackBox PI045A serial to
Centronics parallel converter cable. The cable is
available from BlackBox® (www.blackbox.com)
.

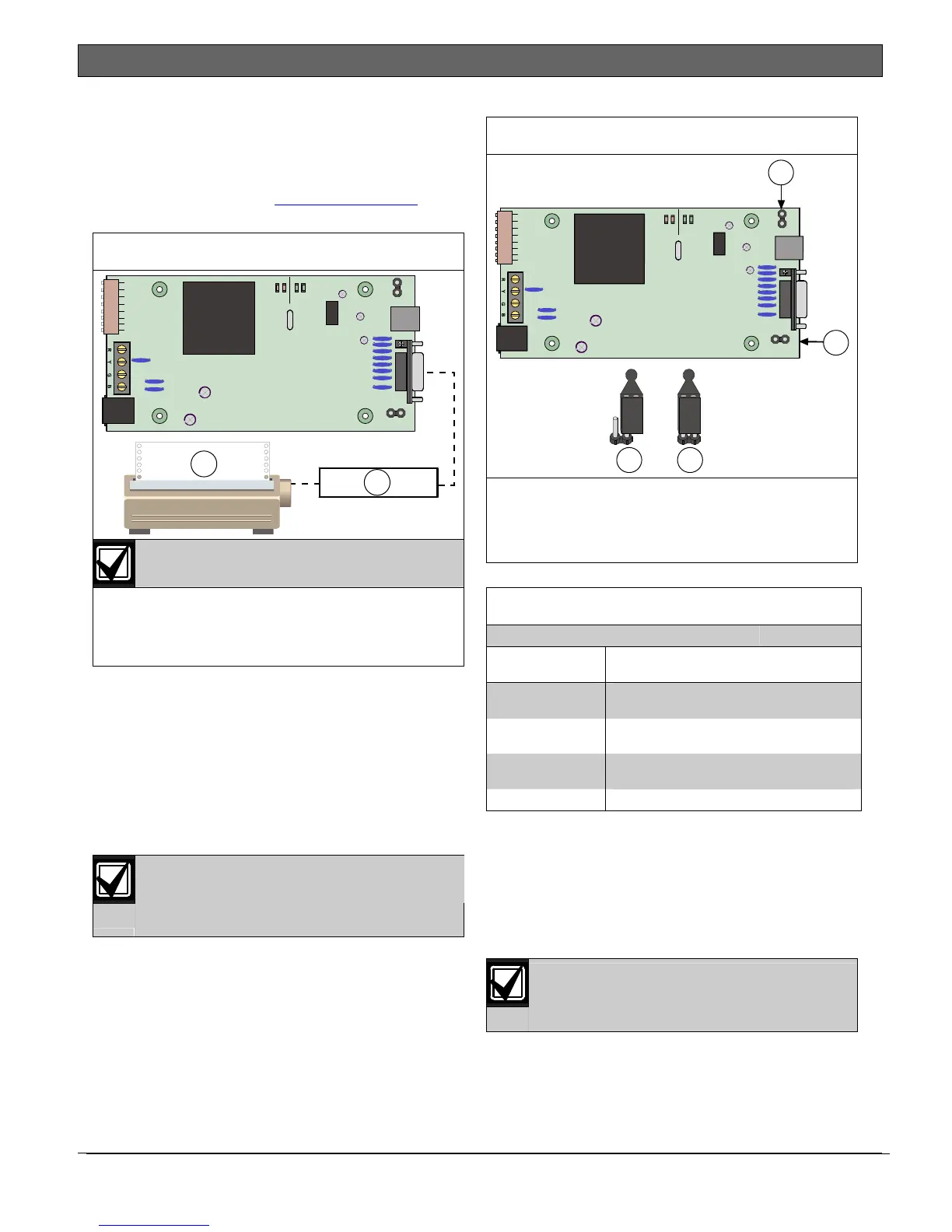

Figure 5: Parallel Device Connections
SER
RxTx
BUS
Rx Tx
LED
P2
P3
2
1
DB9 GND
ENABLE
P1
Printers are not supported on the USB
bus.
1- Parallel converter cable box (BlackBox P/N:
PI045A
2- Parallel printer (compatible option bus control
panels only)
5.0 DX4010V2 Jumper Pin
Settings
5.1 Enable LED Jumper Pins (P2)
Use the diagnostic LEDs for troubleshooting. To
enable the LEDs, place a jumper plug across the
jumper pins labeled P2.
Refer to Figure 6 for jumper pin settings.
The DX4010V2 draws more current when
the diagnostic LEDs are enabled. Do not
enable the diagnostic LEDs under normal
operating conditions.
Figure 6: P2 Jumper Settings
3 4
1
SER
RxTx
BUS
RxTx
LED
P2
P3
2
DB9 GND
ENABLE
P1
1- DB9 GND enable pins (P1)
2- Diagnostic LED enable pins (P2)
3- Disabled
4- Enabled
Table 2: Diagnostic LED Functions
Diagnostic
LED
Function
BUS RX
Data bus receives data from control
panel
BUS TX
Data bus transmits data to control
panel
SER RX
RS-232 receives data from serial
device
SER TX RS-232 transmits data to serial device
5.2 DB9 Ground Enable Pins (P1)
Some devices connected to the DB9 DTE RS-232
connector (P6) can cause a ground fault condition on
the control panel. If this occurs, removing the plug
across the P1 jumper pins clears the ground fault
condition.
Some devices might still cause a ground
fault even if the P1 jumper plug is
removed.
Refer to Figure 6 for jumper pin settings.
