Bosch GTA47W - Assembly Step 7; Attach Linkage Bars

need to freely rotate for stand to
operate properly.
5. Repeat this procedure on opposite
side.

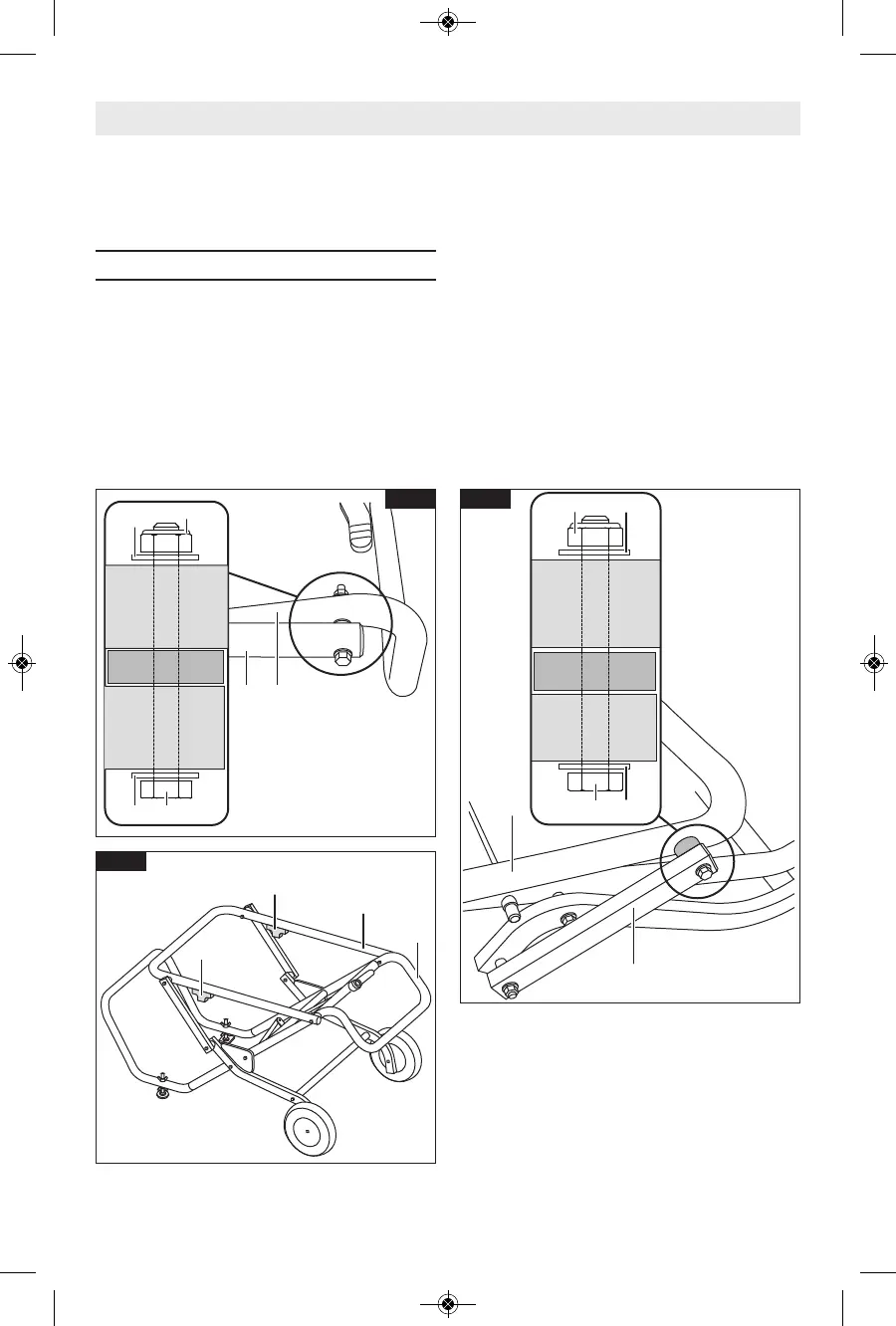

Step 7. Attach Linkage Bars
1. Align hole in upper linkage bar D with
hole in top tube bar F as shown in
figure 7.
2. Place one (1) flat washer L onto one
(1) hex head bolt K.
3. Insert bolt K through linkage bar D
and place small spacer R on bolt
between top tube bar F and linkage
bar D.
4. Insert bolt through top tube bar F,
place one (1) flat washer. Using two
13mm wrenches tighten with one (1)
lock nut M until all the parts cannot
move freely. Then loosen the nut by
1/8 to 1/4 turn. Note: Do not over-
tighten lock nut –these parts need to
freely rotate for stand to operate
properly.
5. Repeat this procedure on opposite
side.
A
A
L
L
M
J
F
R
F
Fig. 6
L
LK
F
D
F
R
D
M
Fig. 7
FF
FF
F
A
Fig. 6a
Assembly
-7-
