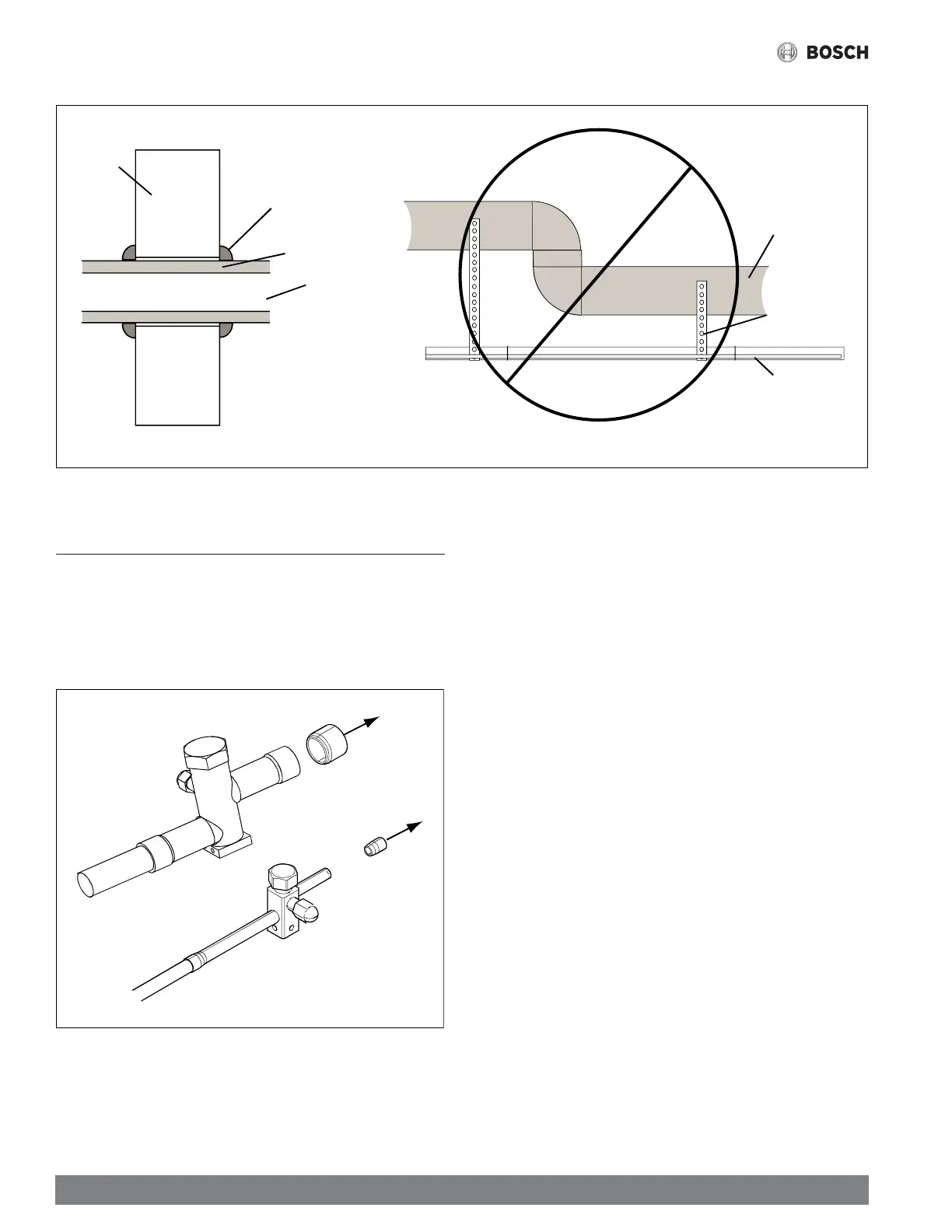

Figure 16
Isolator
Lineset
Ductwork
Suction Line
Sealant
Insulation
Wall
Isolation Through Wall
DO NOT hang linesets from ductwork
8 Refrigerant Line Brazing
8.1 Braze The Refrigerant Lines
1. Remove caps or plugs. Use a deburring tool to deburr the pipe ends. Clean
both internal and external surfaces of the tubing using an emery cloth.
Figure 17
