Bosch KM3211WH - Installation Guide

52

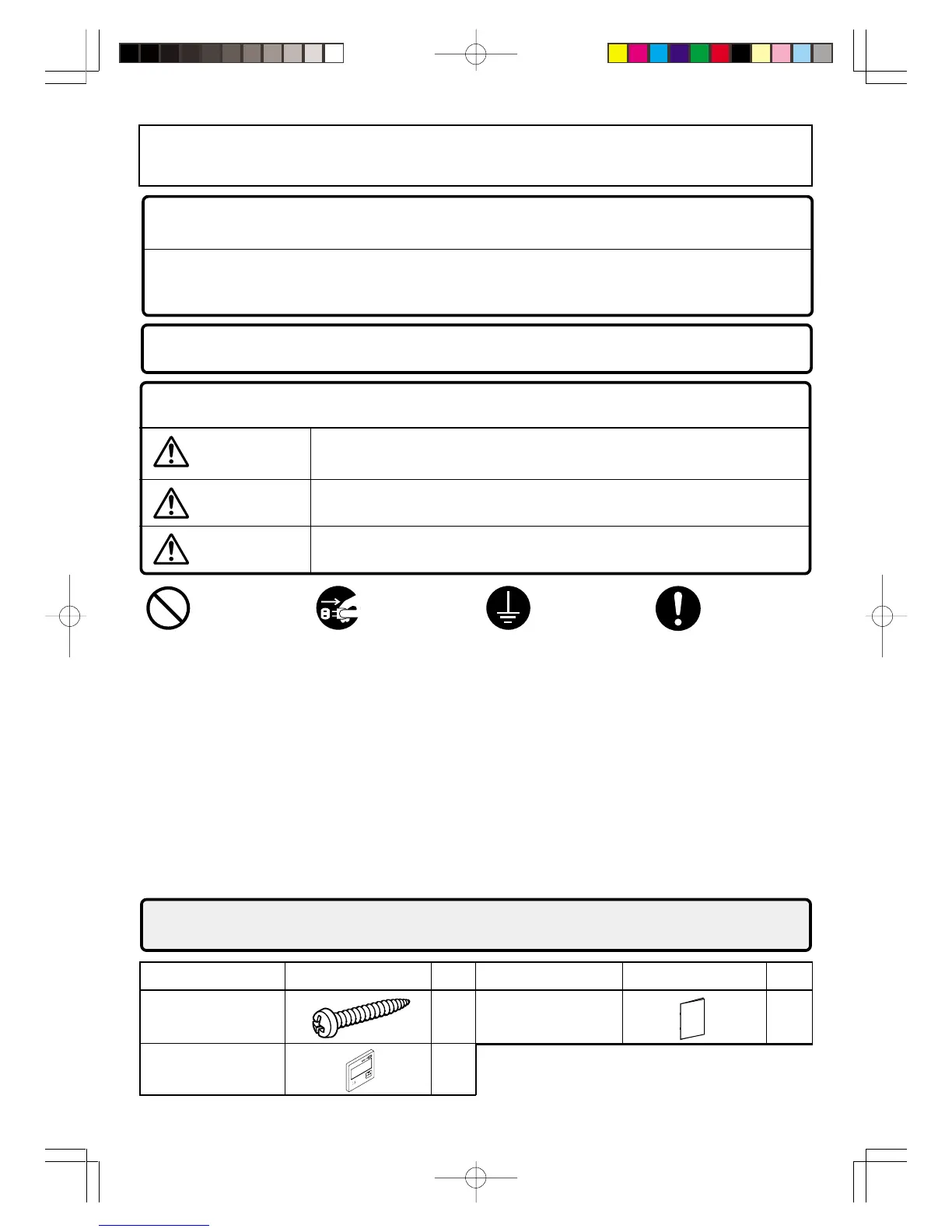

1. Installation Examples
Potential dangers from accidents during installation and use are divided into the following three
categories. Closely observe these warnings, they are critical to your safety.
Prohibited
Disconnect
Power
Ground
Be sure to do
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result
causing property damage, personal injury or death.
Warning
Caution
Danger
Danger of serious injury or even death as well as the danger of fire when
the product is misused by ignoring this symbol.
Possibility of serious injury or even death as well as the possibility of fire
when the product is misused by ignoring this symbol.
Possibility of bodily injury or damage to property when the product is
misused by ignoring this symbol.
Robert Bosch (Australia) Pty. Ltd.
10 Basic Steps for Installation
1. Check cold water supply pressures, min. & max. as per page 62
2. Check gas pipe sizing as per AG5601
3. Determine most suitable location for appliance
4. Check Relevant Gas, Water & Electrical Regulations
5. Fix hot water appliance to wall surface as per page 57
6. Locate & connect cold and hot water piping to unit as per page 62
7. Check gas inlet and burner pressures & adjust as per page 61
8. Check operation of appliance and adjust as per page 66
9. Familiarise yourself with the appliance's operation, and advise customer of its operation
10. Supply customer with these operating instructions and any other relevant paperwork
Installation Guide
GAS WATER HEATER
KM3211WH (Indoor or Outdoor Installation)
KM3211WHQ (Indoor or Outdoor Installation / Internal pump unit)
Fixing Screw
ø 5X35
Part
Note1)
Remotecontrolunitfor
kitchen
Q'ty
Shape
Part
5
Shape
Q'ty
Guide
1
1 set
Note1)
 Supplied with WHQ model only.
