50 | Wiring Diagrams LV Heat Pump Series
LV Heat Pump Series8 733 944 336 (2016/09) Subject to change without prior notice

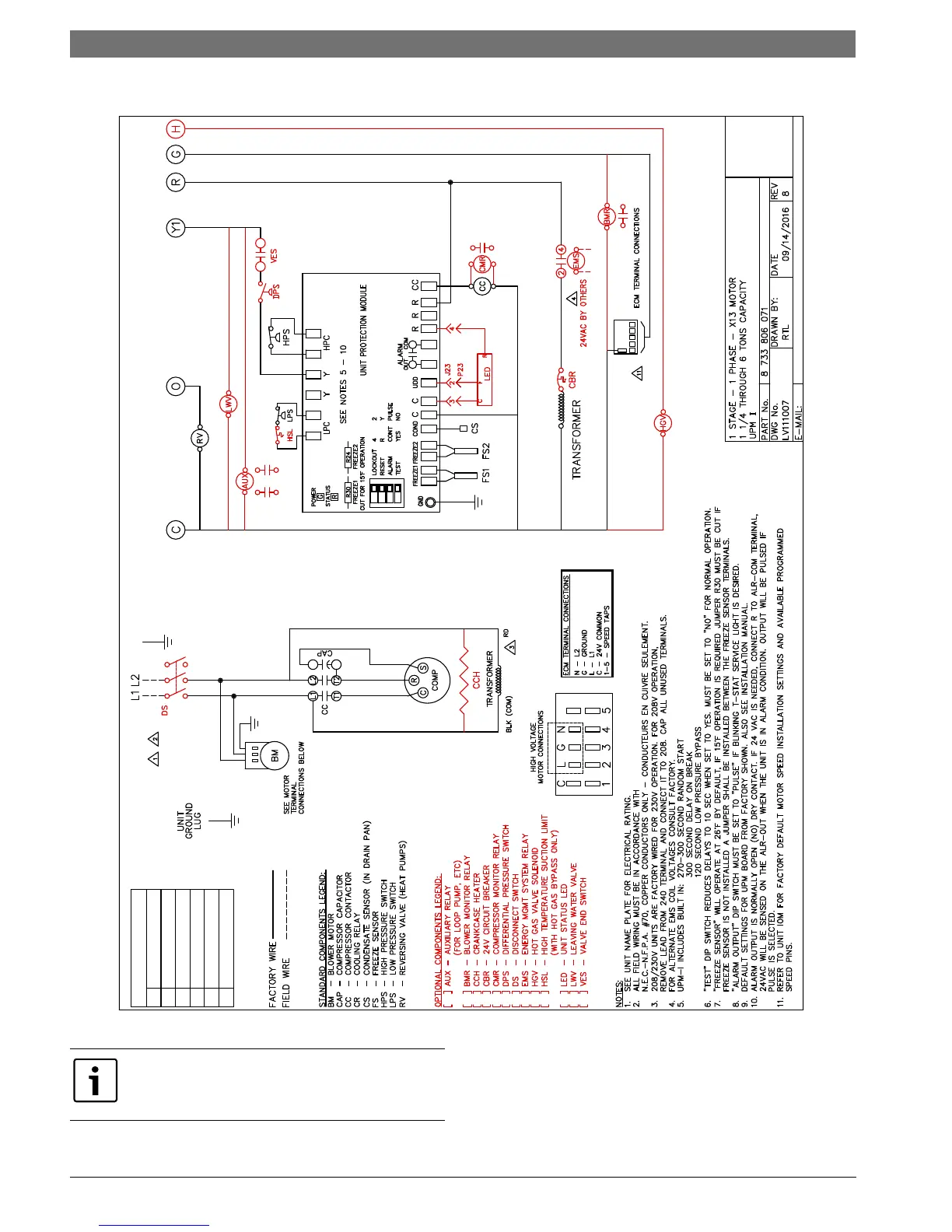

Figure # 20
UPM STATUS LED - BLINK CODES
1
HIGH PRESSURE FAULT
2
LOW PRESSURE FAULT
3 CONDENSER FREEZE CONDITION
4 CONDENSATE OVERFLOW FAULT
5 BROWN OUT FAULT
6 EVAPORATOR FREEZE CONDITION
FOR REFERENCE ONLY Actual unit wiring may
vary from this example. Always refer to the wiring
diagram attached to the unit.
