MAP 5000 Installation | en 21
Bosch Sicherheitssysteme GmbH Installation manual 2018.08 | 23 | F.01U.168.332

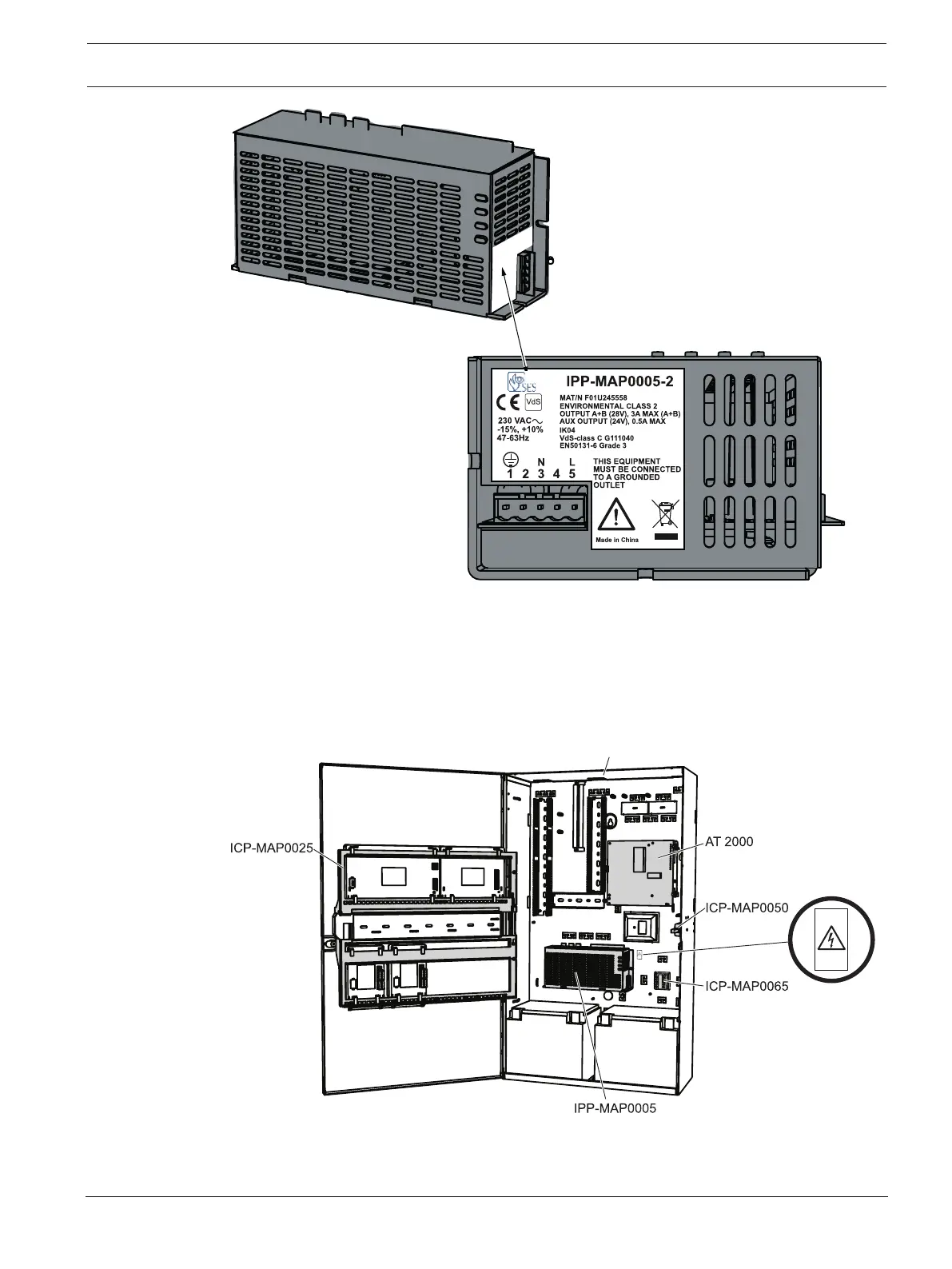

IPP-MAP0005 power supply warning label
The power supply warning label needs to be put on the enclosure back wall before installing
the AC terminal block. The power supply warning label indicates that the terminal block
connected to the AC terminal block may never be removed from the power supply during
operation.
4 Put the power supply warning label on the enclosure back wall at the upper right side of
the power supply as shown in the pictures below.
Figure2.1: Putting the power supply warning label into the ICP-MAP0111 and ICP-MAP0115 enclosure
