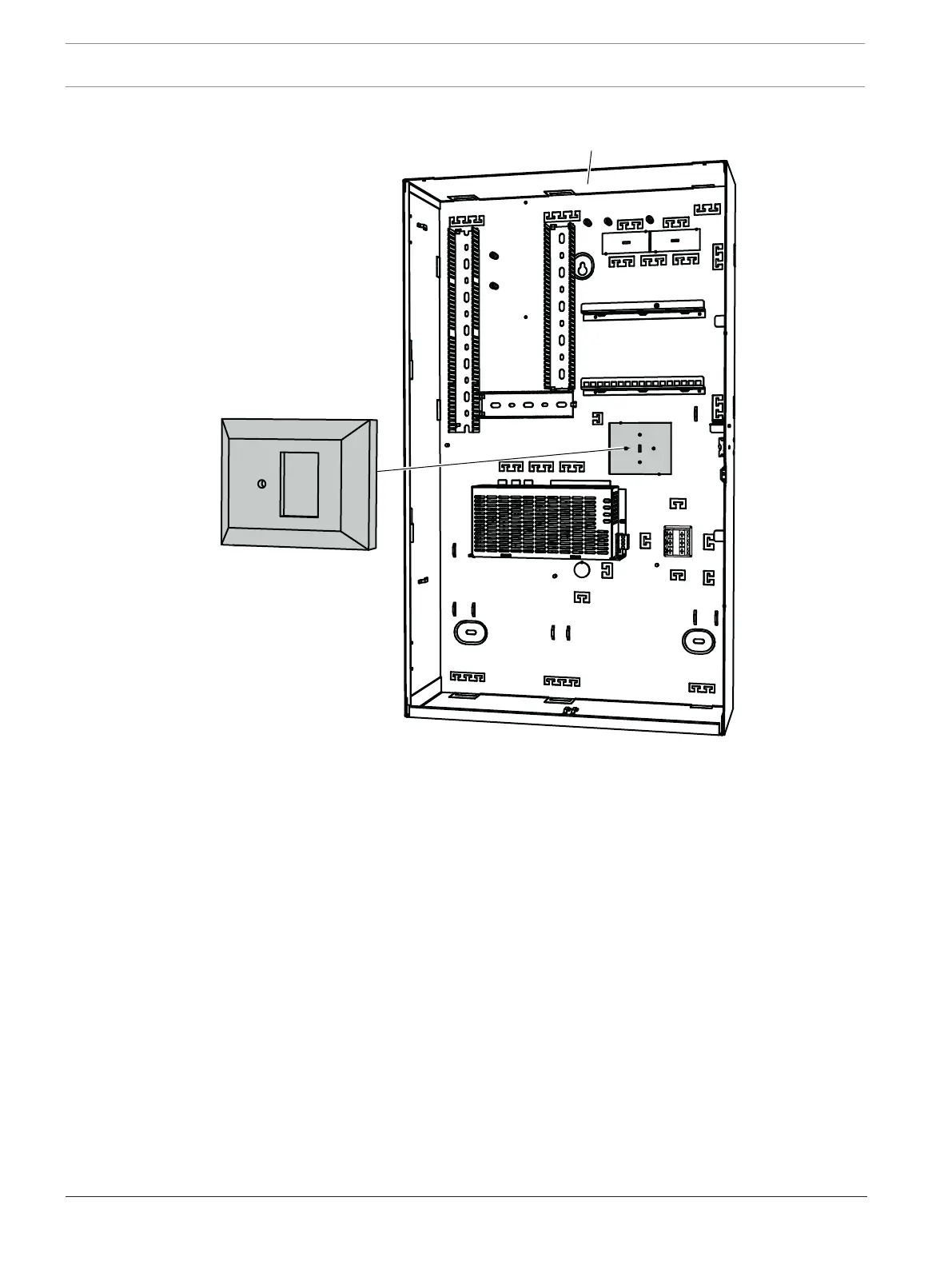

Installing the TAE box
2.7 Installing the accessory mounting plate
1. Align the earth ground stud on the accessory mounting plate with the earth ground hole
on the top mounting rail in the upper right side of the enclosure wall as shown in the
figure below.
2. Slide the clips on the back of the accessory mounting plate onto the top and bottom
mounting rails.
