MAP 5000 Installation | en 33
Bosch Sicherheitssysteme GmbH Installation manual 2018.08 | 23 | F.01U.168.332
2.11 Installing the hinged mounting plate
4 Install the ICP-MAP0025 hinged mounting plate inside the enclosure ICP-MAP0111 or ICP-
MAP0120.

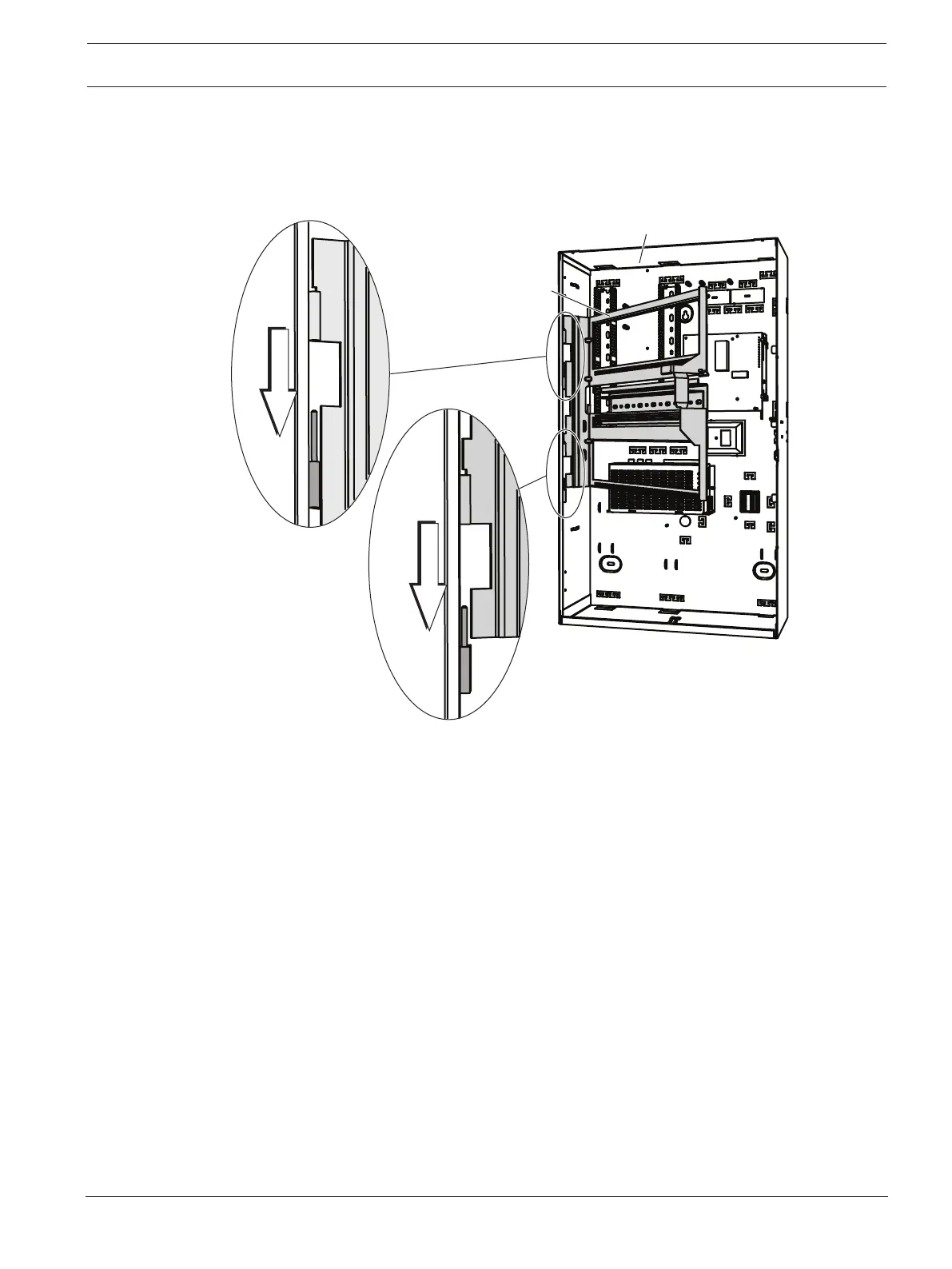

Installing the hinged mounting plate
ICP-MAP0111
ICP-MAP0025
Mounting modules onto the hinged mounting plate
The following graphic shows an overview of the hinged mounting plate and the designated
mounting locations of the modules.
