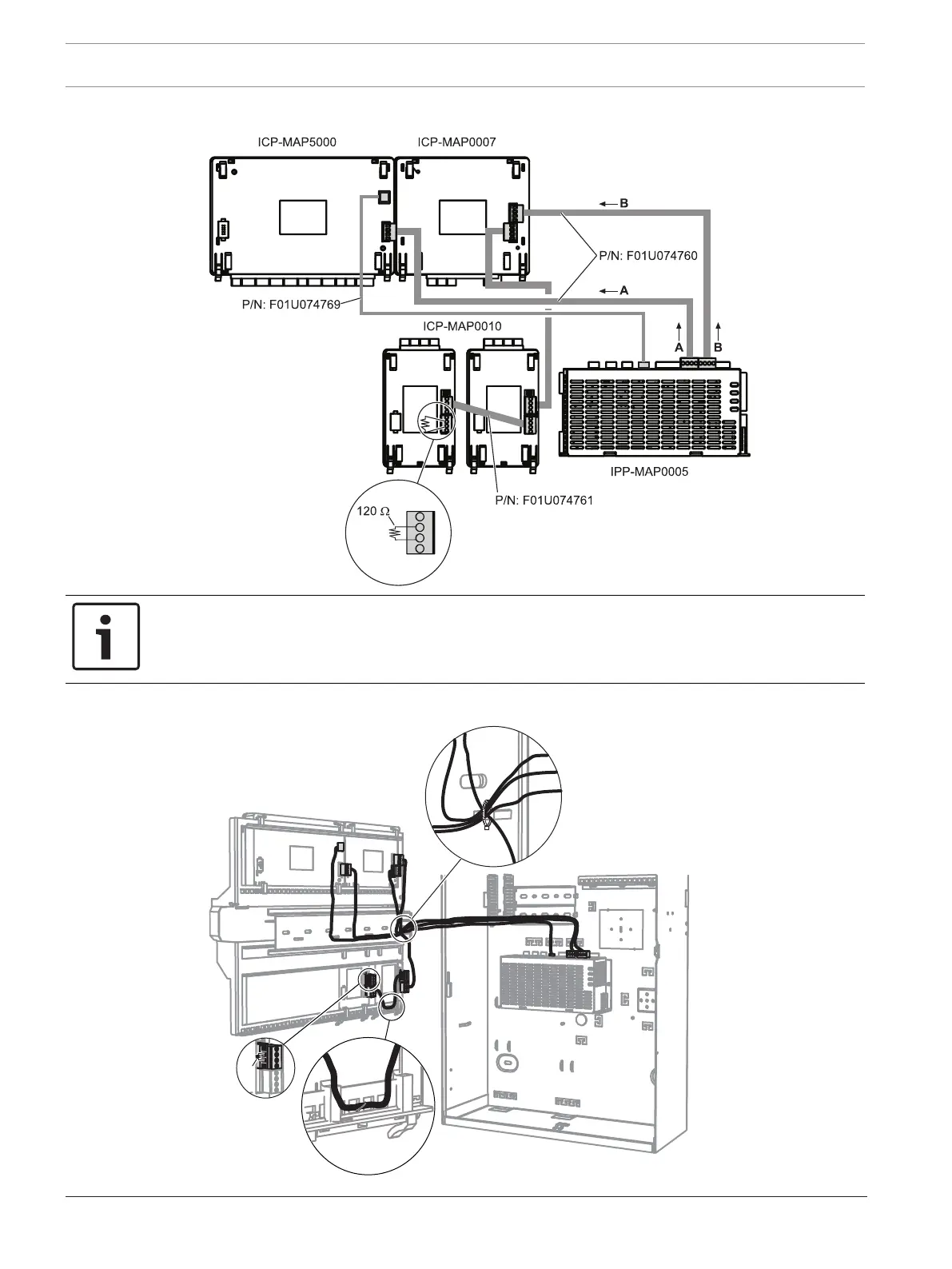

Data bus connections of the system modules on the internal BDB
Notice!
The order of system modules on the BDB shown in the figure is not mandatory. A symmetrical
load distribution to the power supply outputs A and B must be ensured as far as possible.
Data bus cable routing
120 Ω
