Observe the following
mounting instructions:

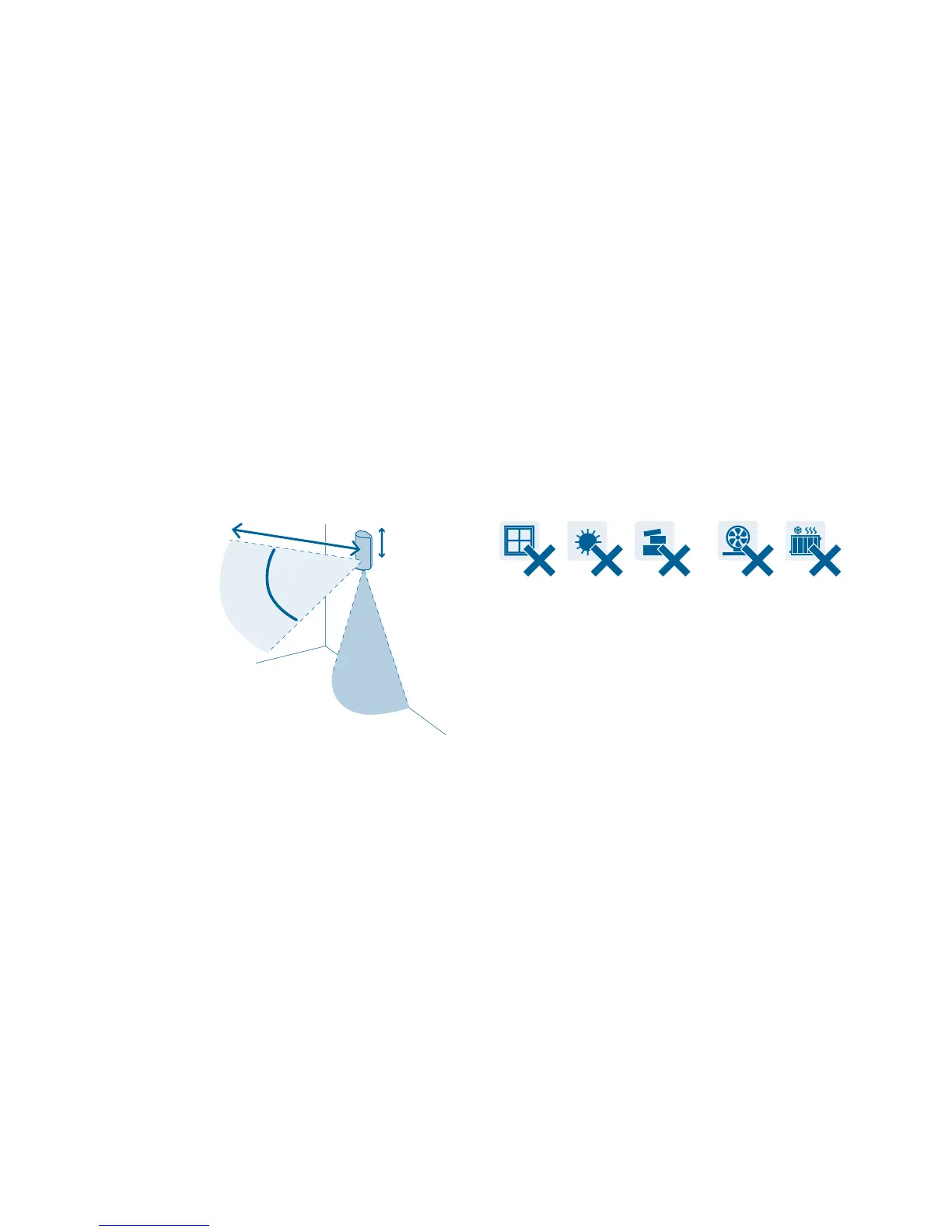

▶ Mount the Motion Detector at
a height of minimum 2.20 m to
maximum 2.70m, as desired
▶ The product has a detection
range of 90° and 12 m
▶ In addition the sneak-by guard
can be activated
▶ There must not be any windows in
the detection area of the Motion
Detector
▶ Avoid direct or indirect sunlight in
the detection area of the Motion
Detector
▶ Do not block the detection area with
objects
▶ Do not install the Motion Detector
near rotating objects (e.g. fans) or
independently moving objects
▶ Do not install the near sources of
heat or cold
max. 2.70 m
min. 2.20 m
90°
12 m
