4.0 THE MOTION DETECTOR
4.1 Product overview
2
3
1
1
2
3
Item Part Explanation
1
LED indicator Status/fault
Red Fault, functional test
Orange Configuration process, update
Green Configuration successful
2 Sensor area With lens
3 Sneak-by guard Increased security
Item Part Explanation
1 Green rotary switch
For setting pet
immunity/sneak-by
guard
2 QR code
Scan for device
identification
3 Contact switch
For device resetting
and theft protection

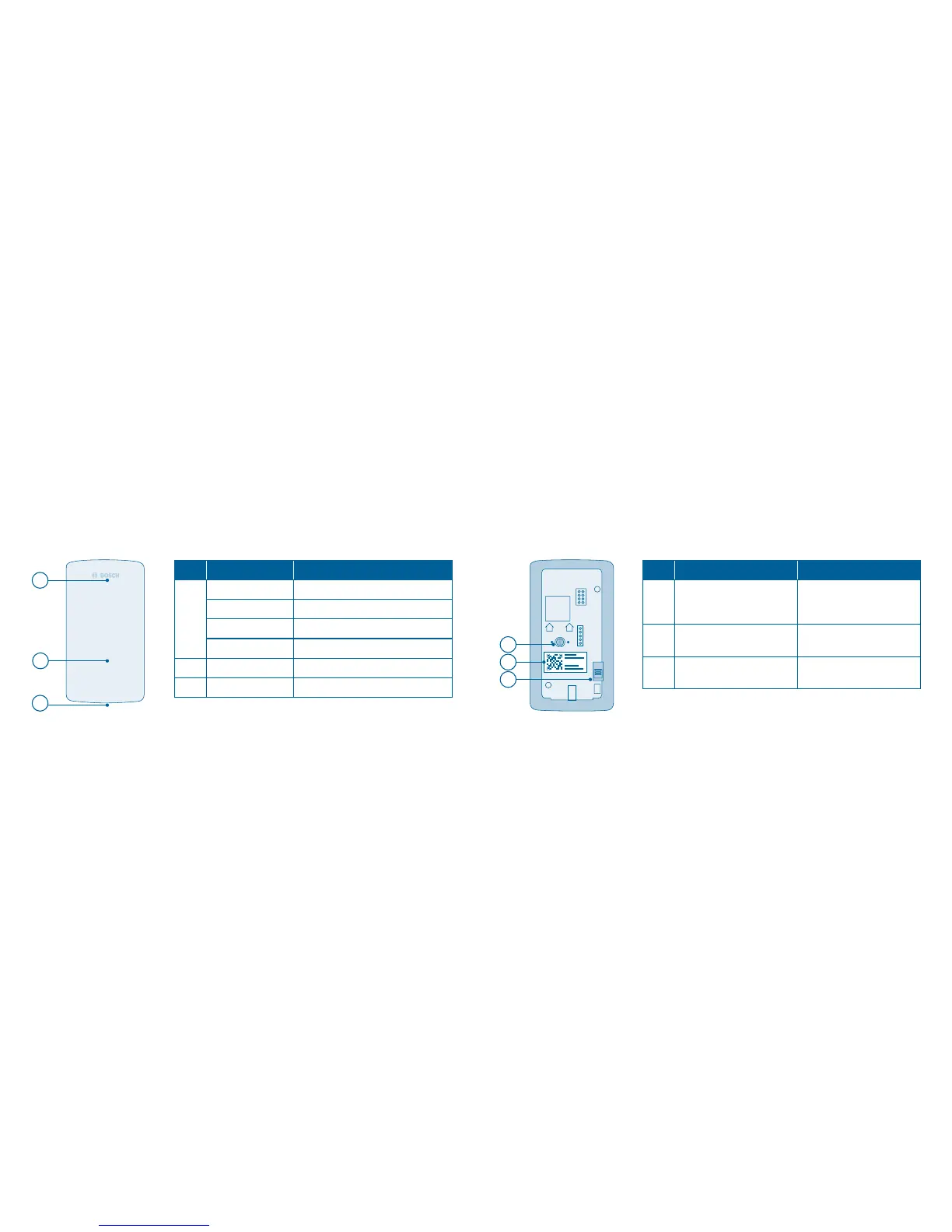

Motion Detector – front side of housing Motion Detector – rear side of housing

Bosch Motion Detector Specifications

General

Technology	Passive Infrared (PIR)
Tamper Protection	Yes
Detection Range	12 meters
Wireless Communication	RF
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Power Source	Battery or wired
