Bosch Security Systems | 2006-01 | 9922 141 50701ml
UHF Wireless Microphone System | Installation and User Instructions | en | 13
4 Installation
4.1 Receiver
Connect the two antennas (1) and (2) on the back of the
receiver and align them upward.
1 Plug the AC/DC adaptor in the DC input socket (3)
in the rear panel of the receiver and into a wall
socket or other electrical outlet.
2 Attach the cable behind the pull-out protection hook.
3 Connect the AF output cable to the AF output socket
(1) and in the MIC IN input socket of a mixer or
amplifier
4.2 Handheld microphone
Inserting and changing the battery
1 Turn the microphone head counter clockwise.
2 Press the battery release button to release the battery
tray.
3 Insert 2 x LR6/AA/UM3 1.5 V batteries in the
battery compartment according to the indicated
polarity.
4 Push the battery tray back into the housing.
5 Put the microphone head back on. Pay attention to
the connector inside the head and turn the
microphone head clockwise to close it.

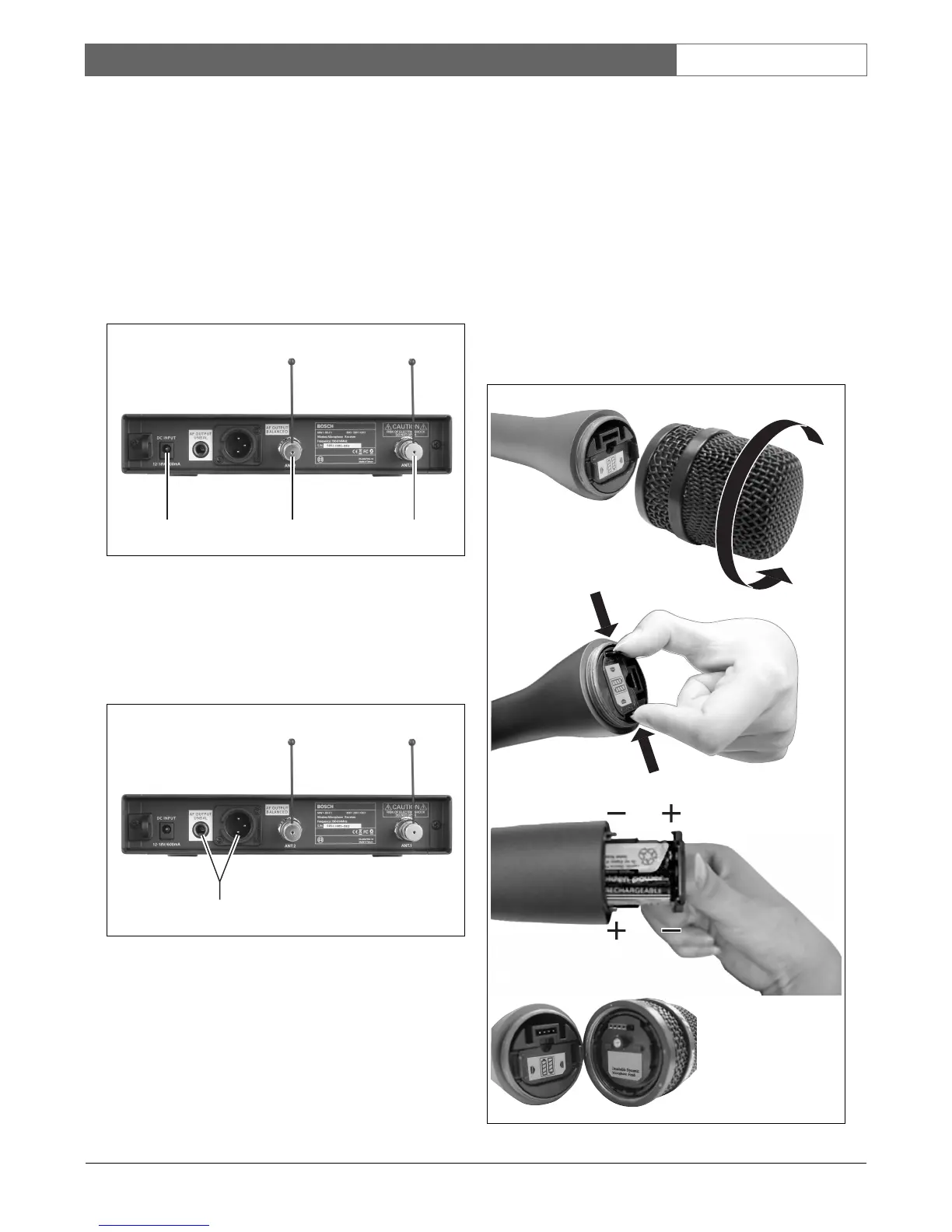

figure 4.1: Receiver connections (step 1)
figure 4.2: Receiver connections (step 3)
23 1
1
figure 4.3: Changing the batteries (handheld microphone)
