5.2.2 Flush mount

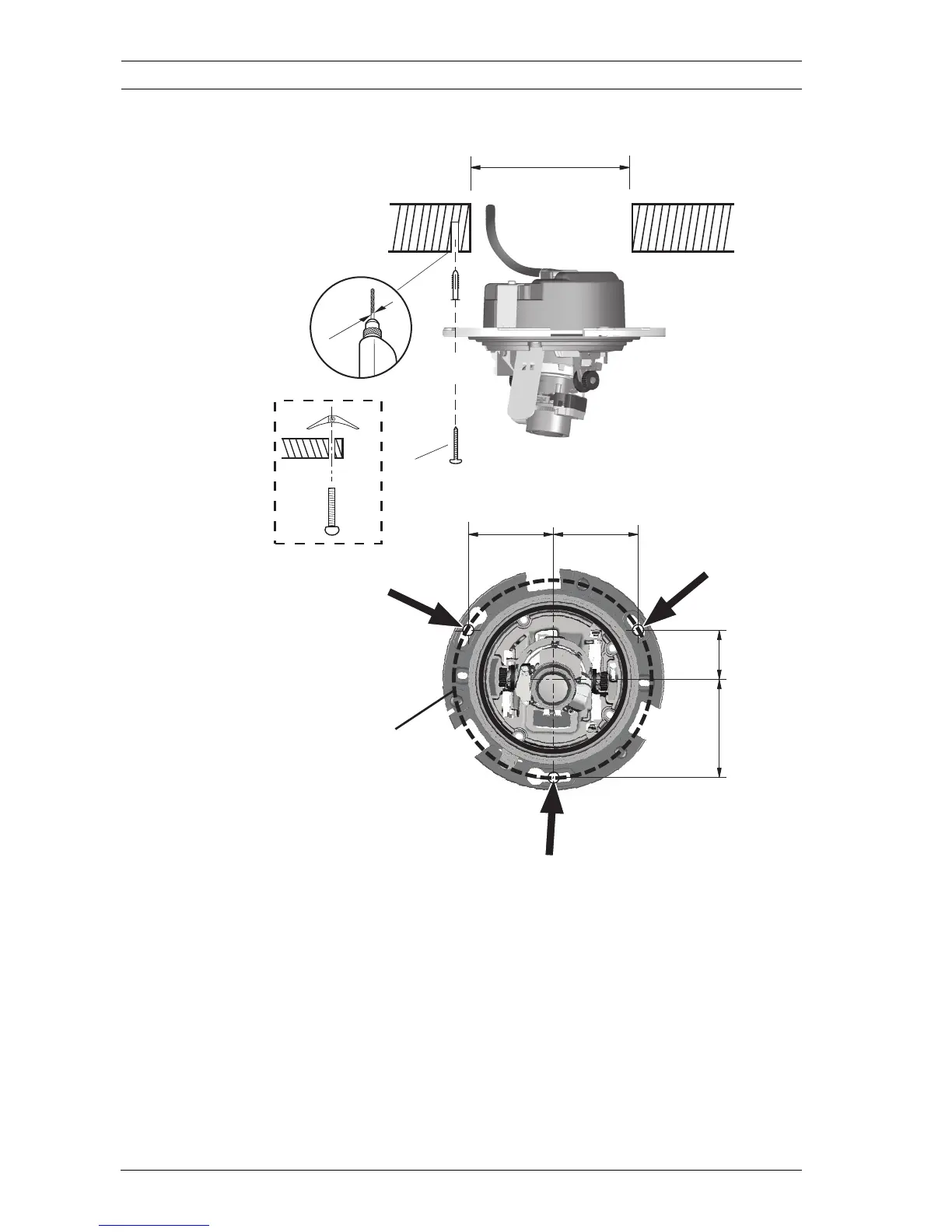

To flush mount the camera in a wall or ceiling:
1. Use the mounting template to mark out the recess and to
mark the holes indicated in the drawing. The PCD is
133 mm (5.25 in)
2. Cut out the recess.
3. Drill three holes with a diameter of 8 mm (0.3 in).
4. Insert the supplied plugs into the holes.
5. Partially insert two screws into the mounting holes.
Ø8 mm
3x
3x
57.6
(2.27)
57.6
(2.27)
33.3
(1.31)
66.5
(2.62)
PCD: 133 (5.25)
105 (4.13)
