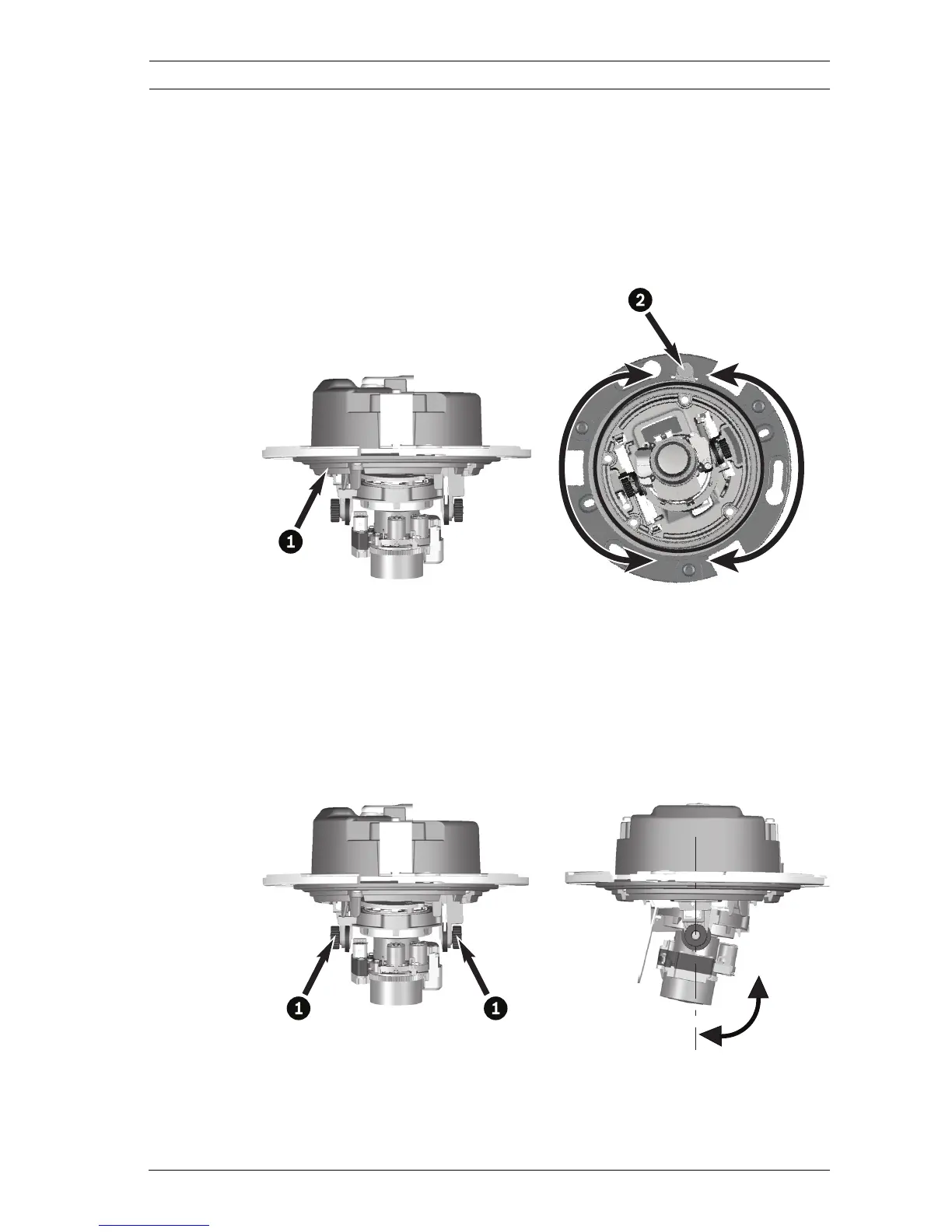

5.6.1 Pan
For horizontal adjustment (pan):
1. Rotate the camera module (1) in the base. Do not rotate
more than 180° in either direction.
2. Tighten the locking screw (2) with the supplied
screwdriver bit.
5.6.2 Tilt
For vertical adjustment (tilt):
1. Loosen the two thumbwheels (1).
2. Swing the camera module between the wings. Do not
rotate more than 90°.
3. Tighten the two thumbwheels (1).
≤90°
