Flexible Automation
Digital input modules
1-14
1070 072 144-101
S1
S2
S3
EZ E

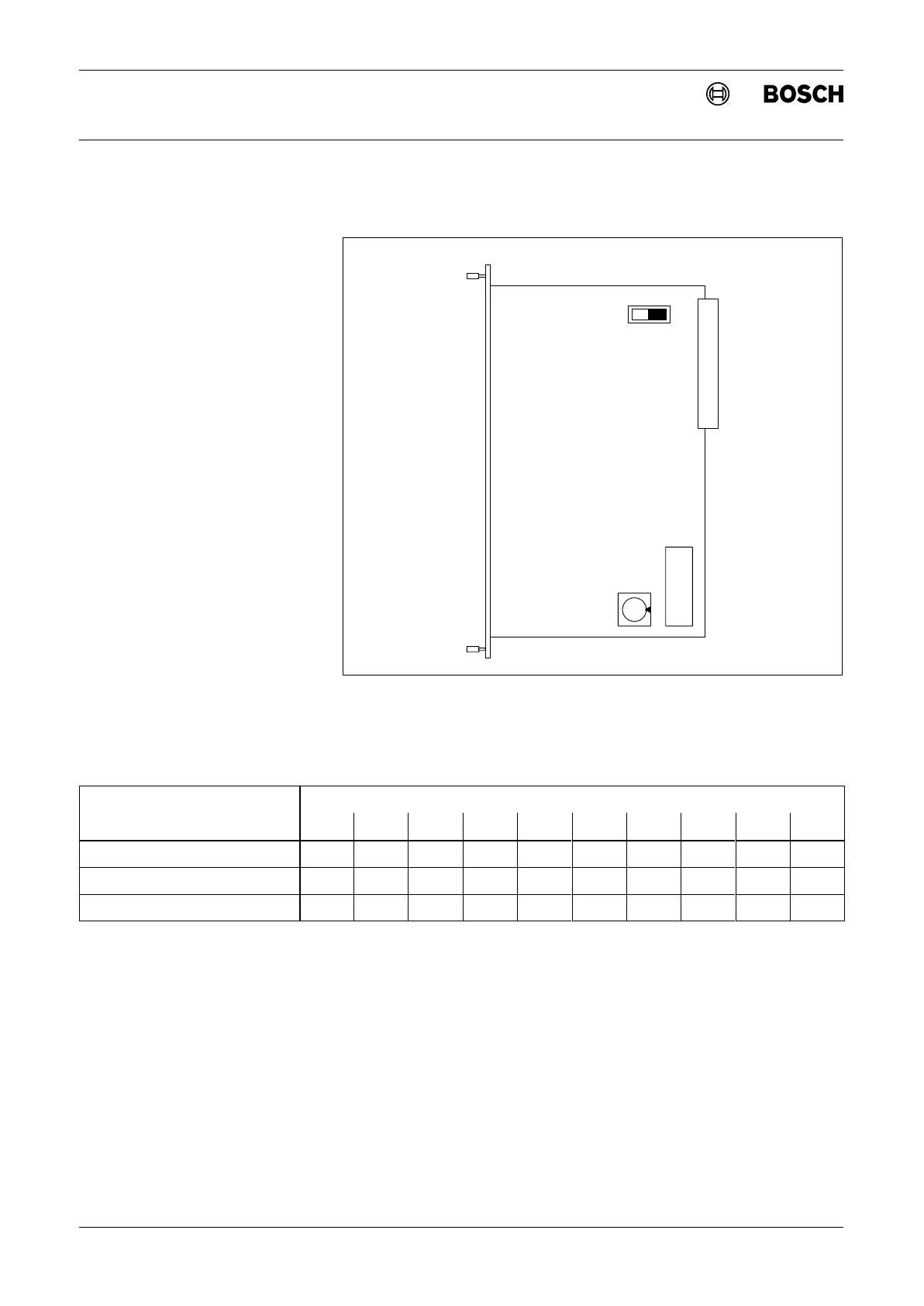

Fig. 1-14 Input module 1070 071 252, Switch
Input delay
The input delay can be set with rotary switch S2; see fig. 1-14.
Time Switch setting
[ms] 0 1 2 3 4 5 6 7 8 9
min. input delay 0 2.5 5 10 20 40 80 160 0 2.5
max. input delay 3.1 5.6 10 20 40 80 160 320 3.1 5.6
pulse recognised when longer 3.1 5.6 10 20 40 80 160 320 3.1 5.6
Fig. 1-15 Rotary switch S2, input delay
