Flexible Automation
Digital output modules
2-18
1070 072 144-101
CAUTION 2.14
Danger to the module!
Do not insert or remove the module when the control is switched on!
This can destroy the module. Switch off or remove the power supply
module of the control, external power supply and signal voltage before
inserting or removing the module!
CAUTION 2.15
Danger to the module!
All ESD protection measures must be observed when using the
module! Avoid electrostatic discharges!

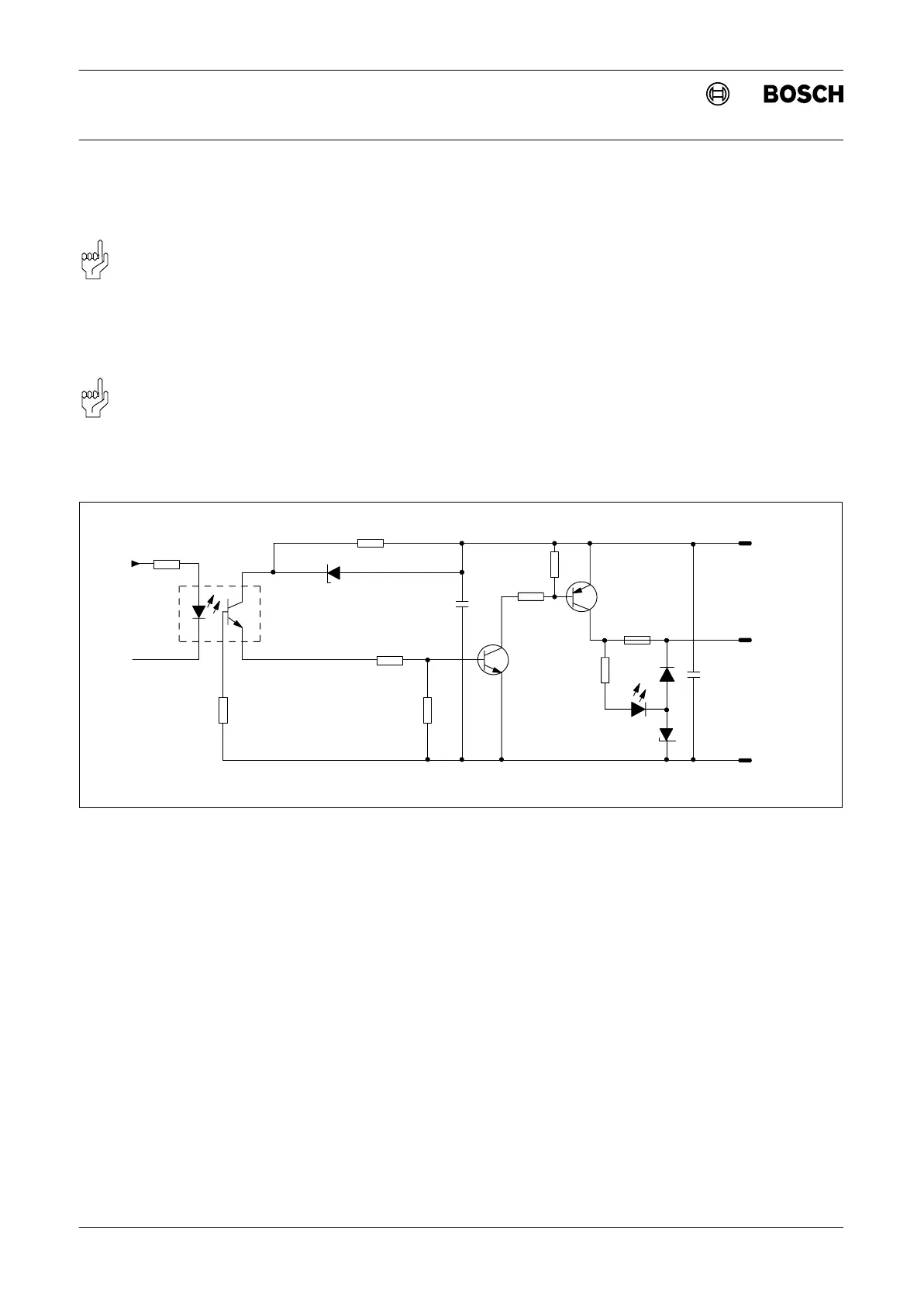

Output circuit
24 V
0 V
FF 2.5 A
0 to 7
Fig. 2-19 Output module 1070 041 348, output circuit
