Flexible Automation
Digital output modules
2-20
1070 072 144-101
CAUTION 2.16
Danger to the module!
Do not insert or remove the module when the control is switched on!
This can destroy the module. Switch off or remove the power supply
module of the control, external power supply and signal voltage before
inserting or removing the module!
CAUTION 2.17
Danger to the module!
All ESD protection measures must be observed when using the
module! Avoid electrostatic discharges!
This output module has 16 2pin outputs. A common 0 V reference potential
is available for every 4 outputs.
The status signal of the output is indicated with the green LED.
The red LED indicates failure of the fuse. The red LED can only signal a fail
ure of the fuse when the output is set.
Output circuit
FF 2.5 A
0 V
0 to 7
24 V
L0 to L7

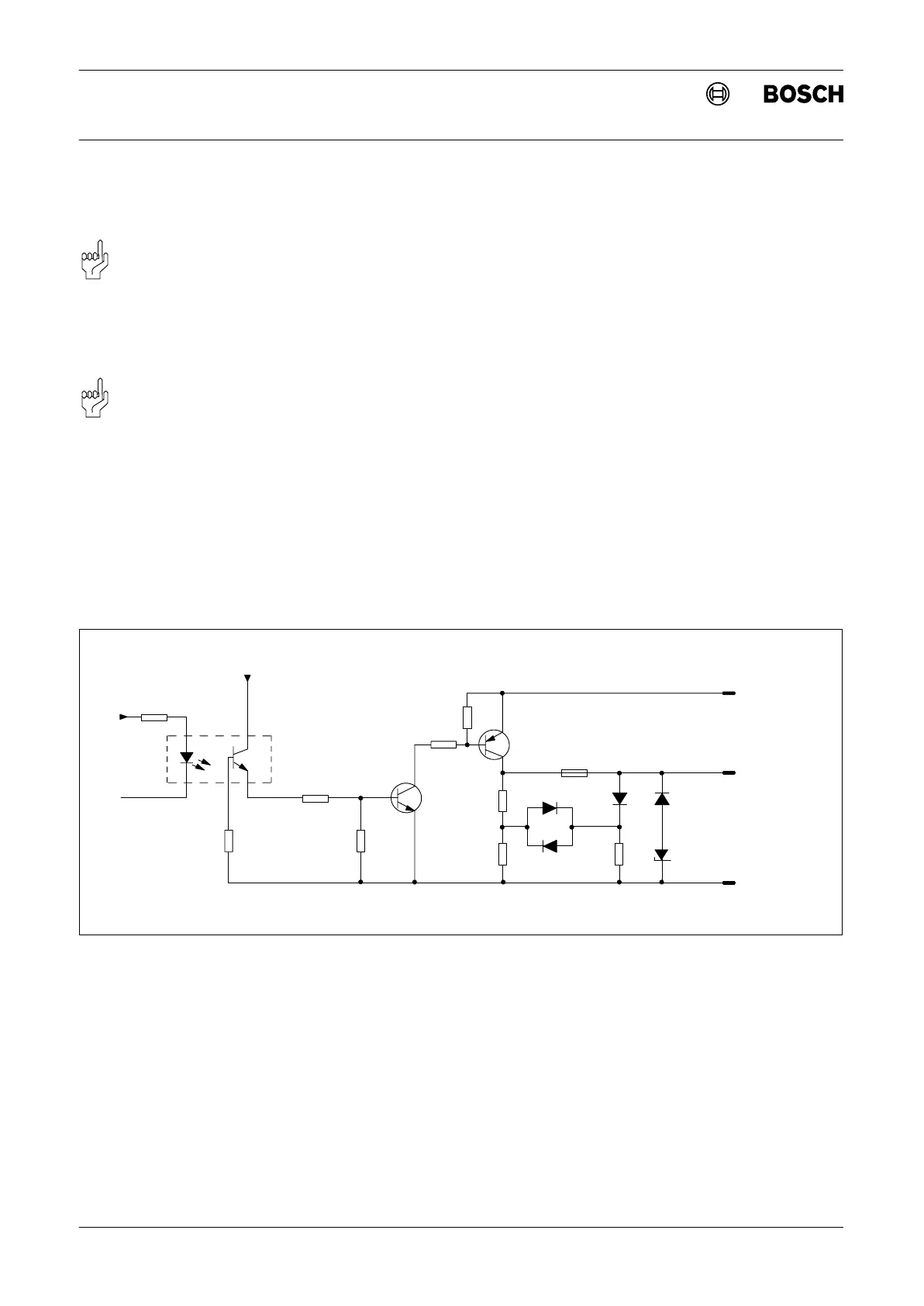

Fig. 2-21 Output module 1070 044 305, output circuit
