10 en | System Overview Plena Easy Line SD Tuner BGM source
PLE-SDT_OM | V1.0 | 2012.02 Installation and Operation manual Bosch Security Systems B.V.

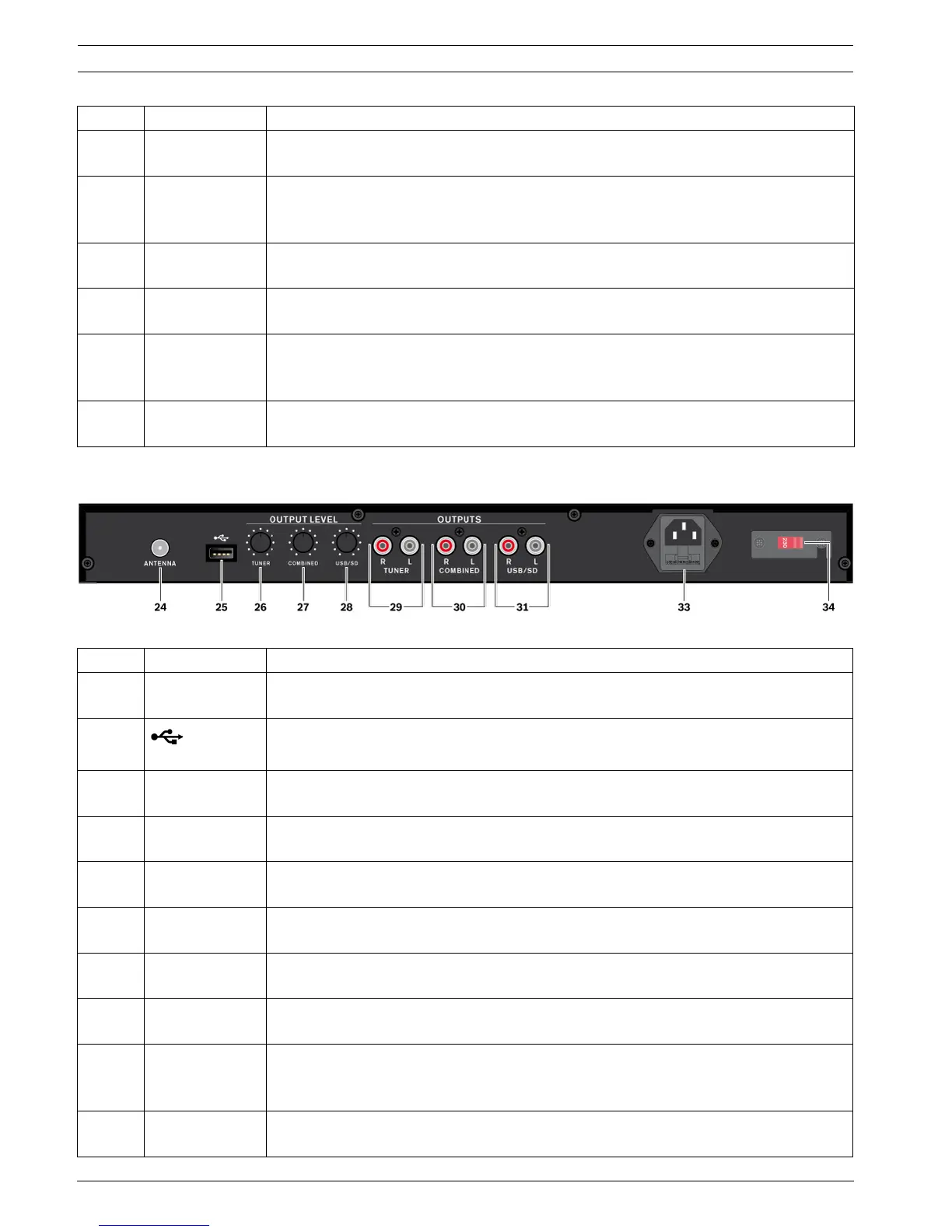

3.5.2 Rear view
Figure 3.2 Rear view
18 - IR receiver lens (remote control).
Refer to Section 8.1 Remote control.
19 |< Every time you press the button the tuning frequency goes down with 50 kHz. Press
for two seconds to scan down to the next station.
Refer to Section 8.3 FM tuner.
20 +10 Radio frequency preset selection (>10).
Refer to Section 8.3 FM tuner.
21 TUNER On/Off LED indicator FM tuner.
Refer to Section 8.1 Remote control.
22 >| Every time you press the button the tuning frequency goes up with 50 kHz. Press for
two seconds to scan up to the next station.
Refer to Section 8.3 FM tuner.
23 PROG To save the radio frequency presets.
Refer to Section 7.1.2 Preset radio frequency programming.
Number Front view Description
Number Rear view Description
24 ANTENNA FM tuner antenna input (75 Ohm) socket.
Refer to Section 6.2.1 FM tuner antenna.
25 USB 2.0 4-pin socket. Refer to Section 6 Connections.
26 TUNER Tuner audio output level control.
Refer to Section 7.1.1 Tuner audio output level control.
27 COMBINED Combined USB/SD and FM tuner audio output level control. Refer to
Section 7 Configuration.
28 USB/SD USB/SD audio output level control.
Refer to Section 7.1.1 Tuner audio output level control.
29 TUNER R/L Tuner output (right and left channel) sockets.
Refer to Section 6.3 Rear side audio output sockets.
30 COMBINED R/L Combined USB/SD and FM tuner output (right and left channel) sockets.
Refer to Section 6.3 Rear side audio output sockets.
31 USB/SD R/L USB/SD output (right and left channel) sockets.
Refer to Section 6.3 Rear side audio output sockets.
33 - Mains power inlet + fuse holder.
(Fuse: 230V = 0.63AT/250V. Fuse: 115V = 1.25AT/250V).
Refer to Section 6.2.3 Mains power socket.
34 - Mains power selector (230V or 115V).
Refer to Section 5.1 Source unit connections / settings.
