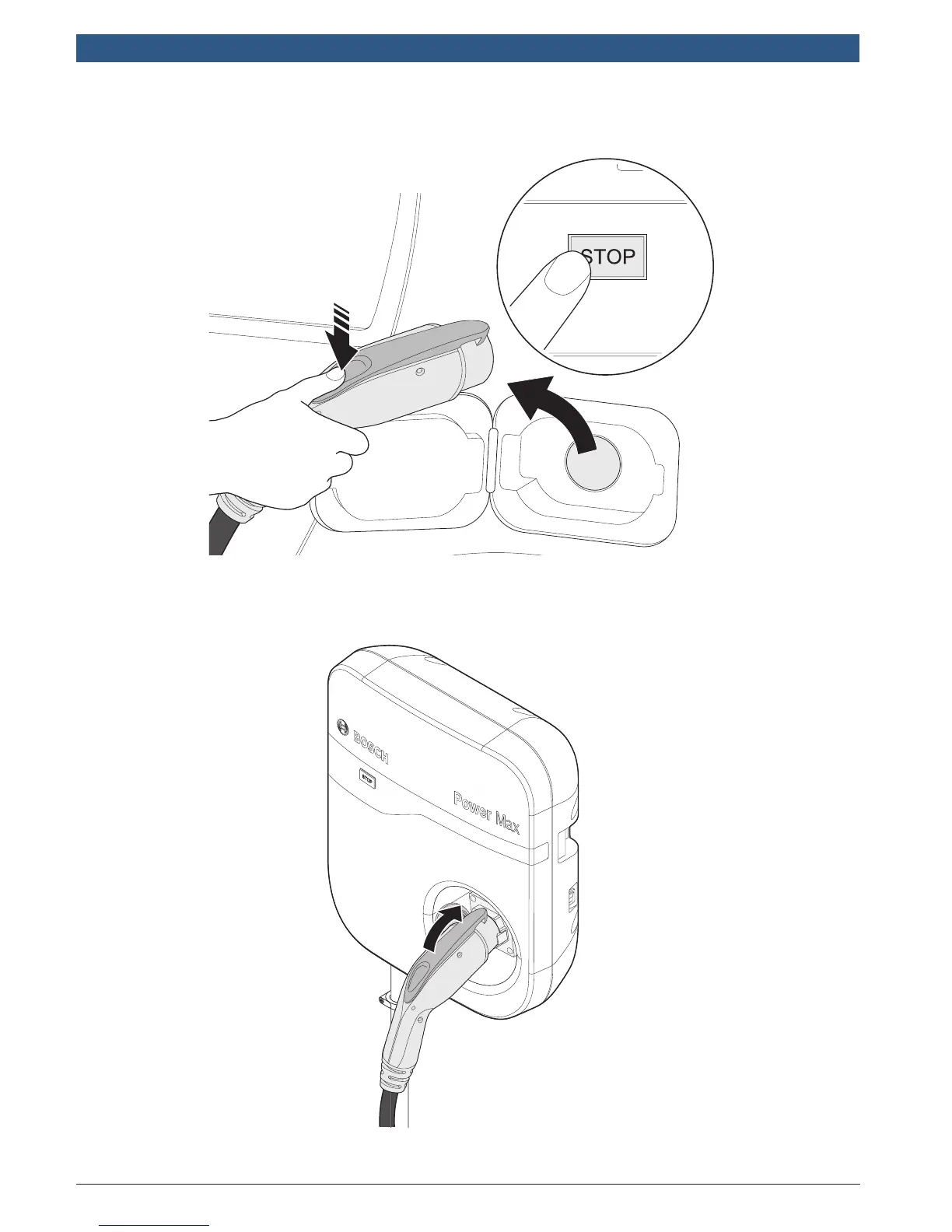

3. See Figure 6-3. To stop charging before charging is complete, disconnect the charging plug from the EV or press
the “Stop” button. Remove and reconnect the charging plug with the EV to start charging again.
Figure 6-3. Stop charging
4. SeeFigure6-4.Whenchargingiscomplete,disconnectchargingplugfromtheEVandplaceitintheplugdock
to store the charging cable properly.
Figure6-4.Placethechargingplugintheplugdock
