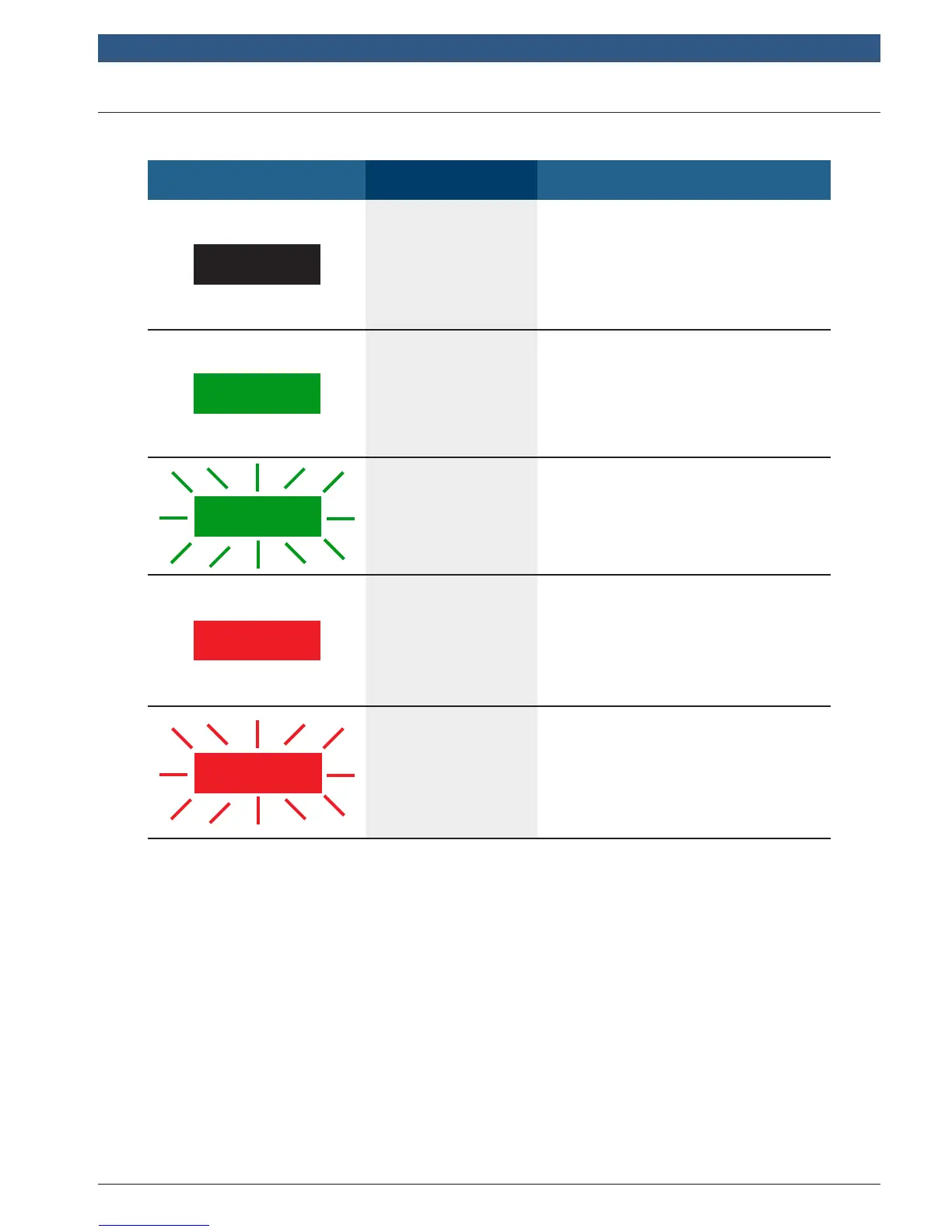

6.2 Charging Status Indicators
LEDStatus Description Denition
Off
Power is off.
UsetheON/OFFswitchonthesideof
the Level 2 Charging Station to turn on
the power.
Solid green
Level2ChargingStationisON;charging
not in process.
Connect the charging cable to begin
charging.
Flashing green
Charging in process.
LED status returns to solid green
(above) when charging is complete.
Solid red
Level 2 Charging Station fault.
Stop using the Level 2 Charging Station
and contact the Level 2 Charging Station
provider.
Flashing red
Level 2 Charging Station is recovering
from a minor fault.
Stop using the Level 2 Charging Station
until the LED turns solid green.
Note:
Minorclickingnoisesarenormalduringstartup(poweringonthePowerMaxLevel2ChargingStationand
connecting to EV).
