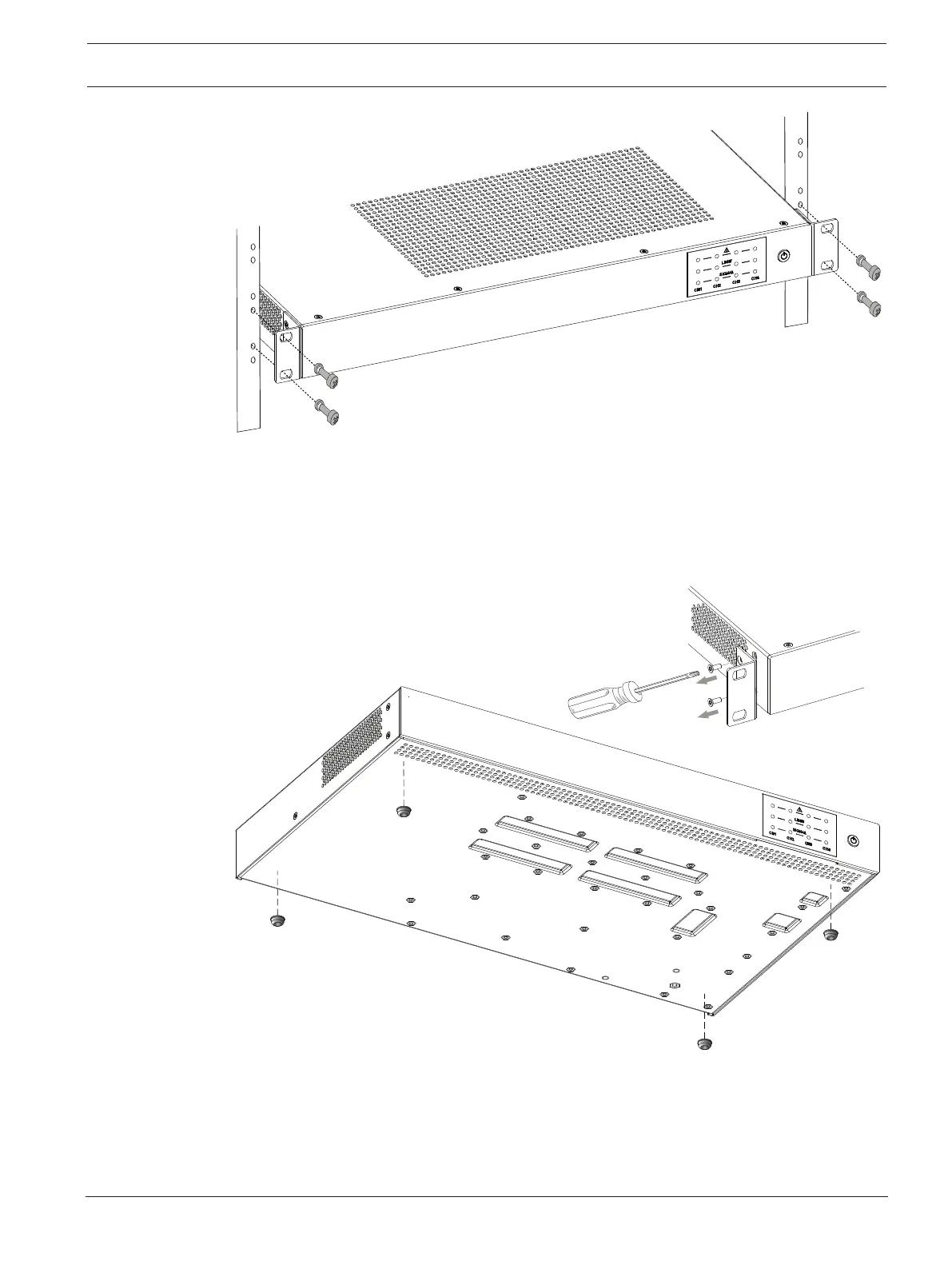

Additionally securing the amplifier by rack rails might be necessary in case you intend to
transport the rack. Failure to do so may result in damage to the power amplifier as well as to
the rack case.
Table-top use
If you want to use this device outside a 19”‑rack on a tabletop, dismount the rack mount ears,
and mount the four self‑adhesive rubber feet on the bottom of the device.
Ventilation
The airflow direction is side-to-rear. In general, setting up or mounting the power amplifier has
to be done in a way that fresh air can enter unhindered at the side and exhausted air can exit
at the rear. When installing the power amp in a case or rack system, attention should be paid
to these details to provide sufficient ventilation.
