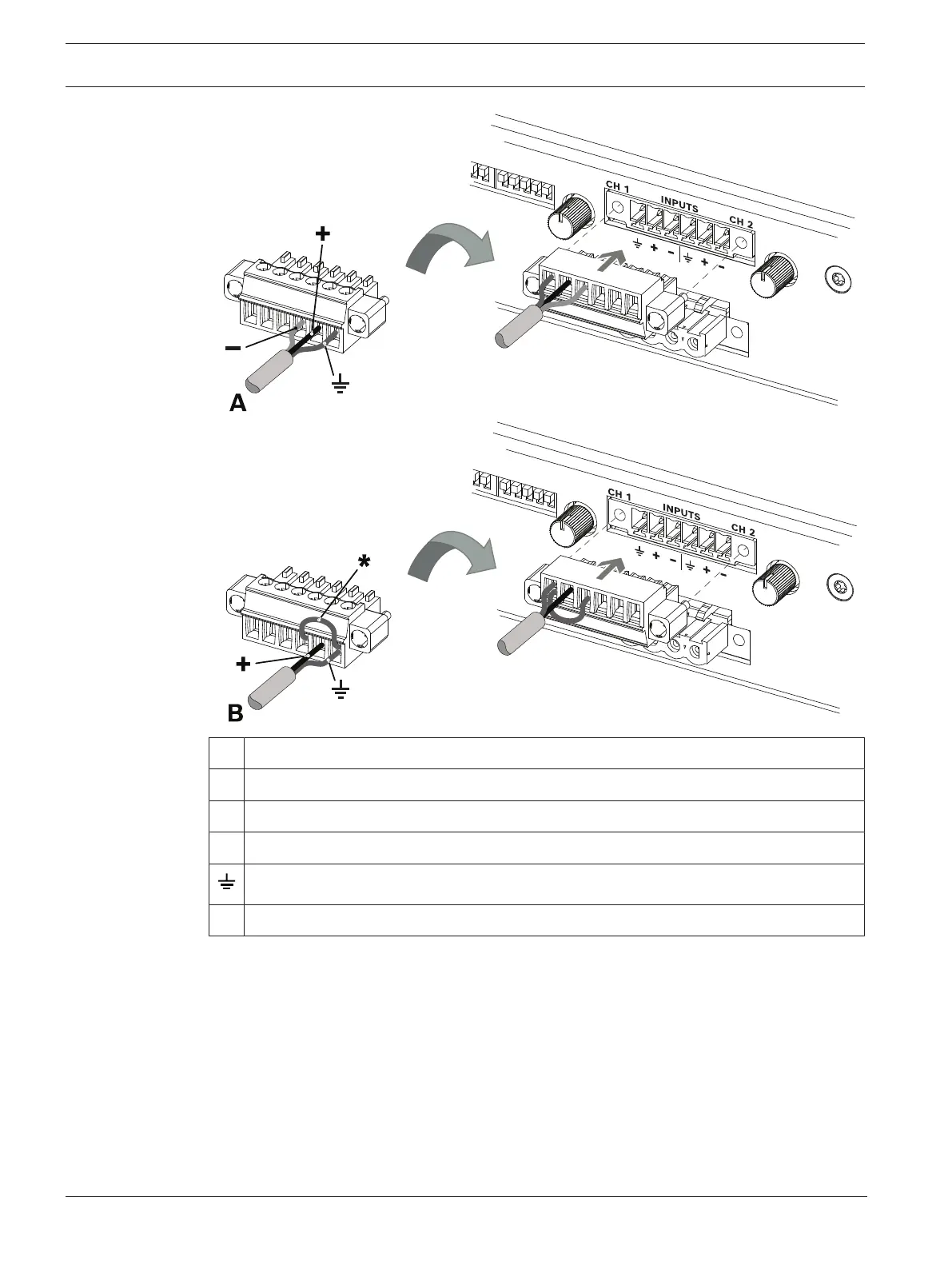

A Balanced input connection
B Unbalanced input connection
+ Hot
- Cold
Shield
* Jumper from cold to shield
– The pin out is labeled on the rear of the amplifier.
Refer to
– Indicators, controls and settings, page 16
