76/108 Bosch Rexroth AG CS351 | 3609929B45/2014-09
Product description
Slot for the mass storage (X6C1)
This interface is intended for the use of the
CF350 mass storage.
USB host interfaces (X3U1, X3U2)
These interfaces are designed as type A so-
ckets. They meet the requirements accor-
ding to USB Specification 2.0.

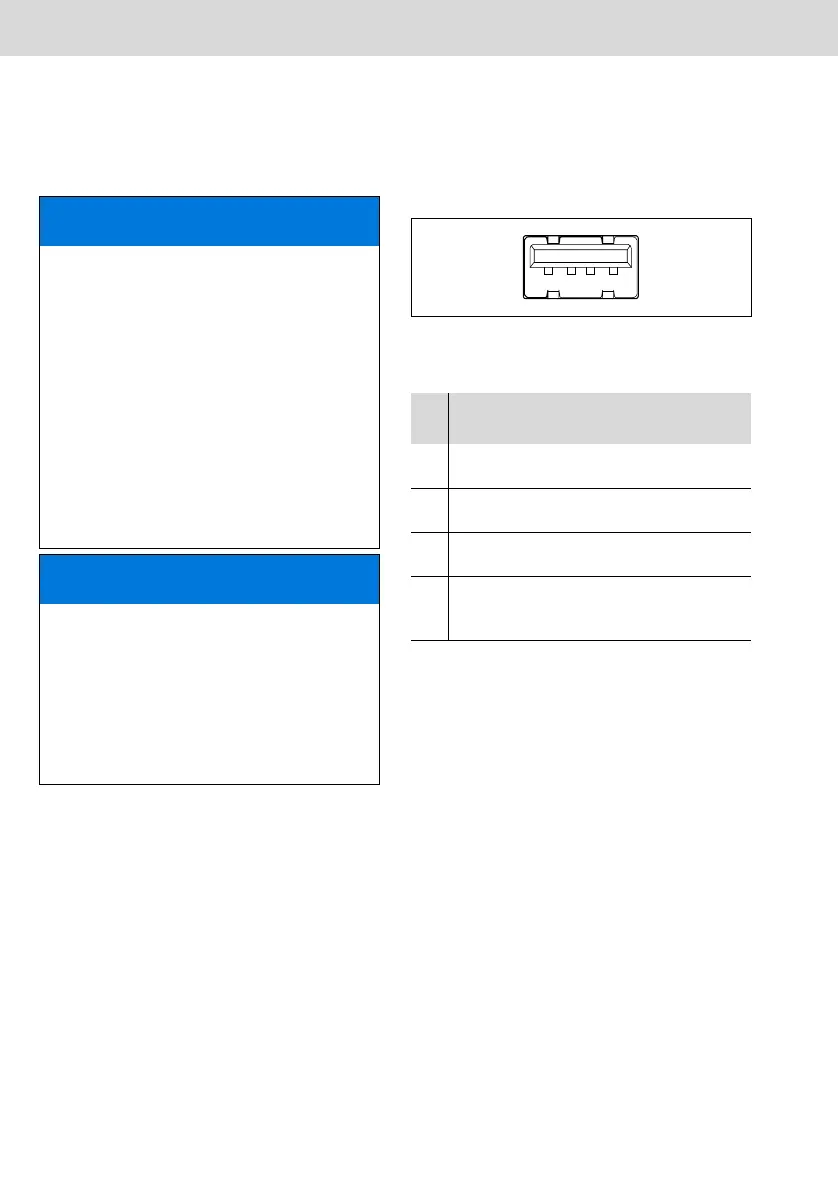

Fig. 14: USB socket, type A
NOTE
Damage due to improper assembly!
Damage to the connections
Only use mass storage from Rexroth.
Insert the CF350 mass storage in the
Compact System with the plug-in
connections facing forwards, so the
“Rexroth” product label (front of the
card) is visible.
When installed, the mass storage will
protrude approximately 1.5 cm from
the device. Push it into the slot until
you feel it reach the end stop.
NOTE
Damage caused by disconnecting
the mass storage with voltage ap-
plied!
Damage to the mass storage
Only disconnect the mass storage
when the Compact System is not un-
der voltage.
Tab.9: X3U1, X3U2 assignment
Pin Signal
Description/
function
Volt-age/
current
1 VCC 5 V supply 5 V= / 0.5
A
2
USB_Data–
Receive USB
data
3
USB_Data+
Receive USB
data
4 GND Reference po-
tential for all volt-
ages
PE poten-
tial
CS351_zweispaltig - D.book Seite 76 Donnerstag, 2. Oktober 2014 8:36 08
