CS351 | 3609929B45/2014-09 Bosch Rexroth AG 95/108
Maintenance and repair
ENGLISH

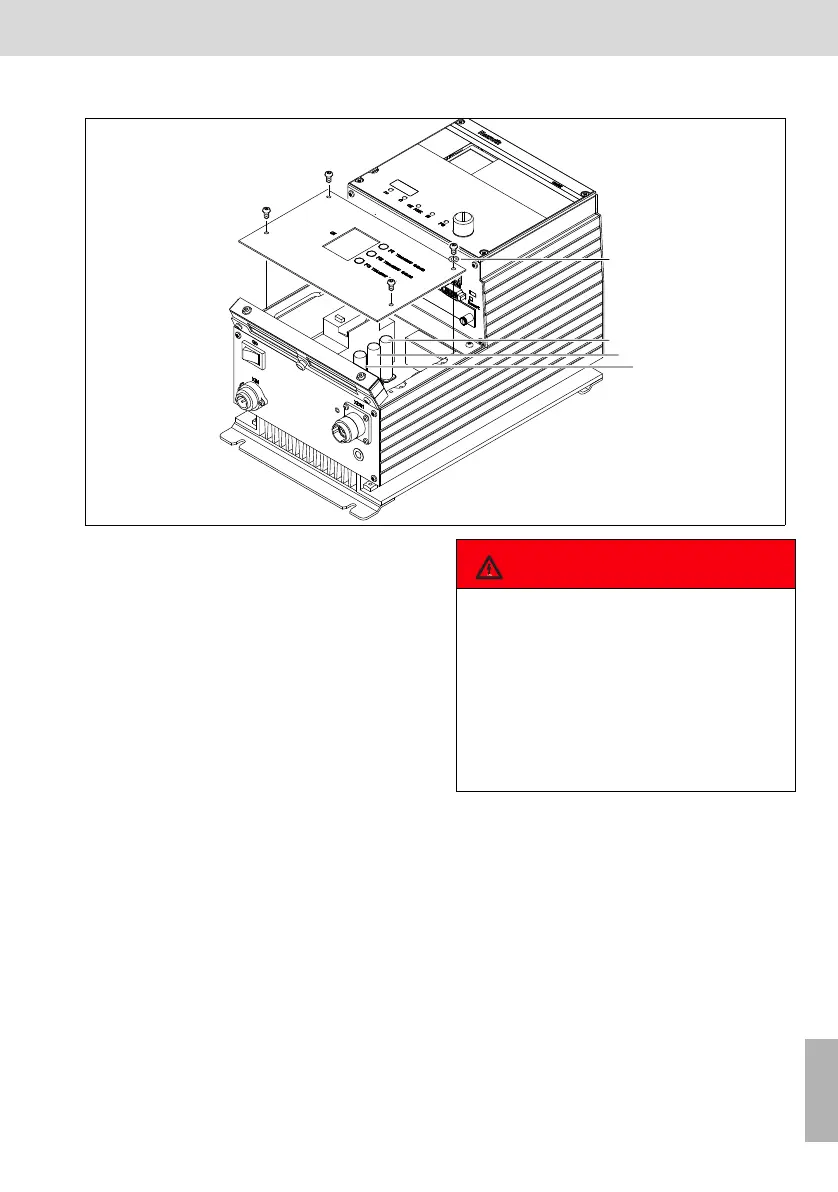

Fig. 37: Fuses
F1 Main circuit fuse Si 10 A, 250 V,
6.3x32 mm slow-blow,
Manufacturer: ESKA/ENDRICH, order
number UL632.727
F2 Main circuit fuse Si 10 A, 250 V,
6.3x32 mm slow-blow,
Manufacturer: ESKA/ENDRICH, order
number UL632.727
F3 Controller fuse 2 A STG 5x20mm T
Manufacturer: LITTELFUSE, type:
0215002)
1 Tooth lock washer to ensure grounding
of the front plate
Assemble the front plate. The tightening
torque for the bolts is 1.4 + 1 Nm.
DANGER
Electrical voltages!
Electrocution
Make sure when assembling the front
plate that the tooth lock washer (with
the ground symbol) is fitted on the top
right bolt. Low impedance connection
of the front plate to ground is only en-
sured if the washer is fitted.
